1xN(N≤16) Rack Optical Switch
  • 1xN(N≤16) Rack Optical Switch
  • 1xN(N≤16) Rack Optical Switch

1xN(N≤16) Rack Optical Switch

Switch Type:Mechanical

Package Type:Rackmount

Fiber Configuration:1xN

Channel:N≤16

Dimension:1U, L482.6×W250×H44mm

Product Details

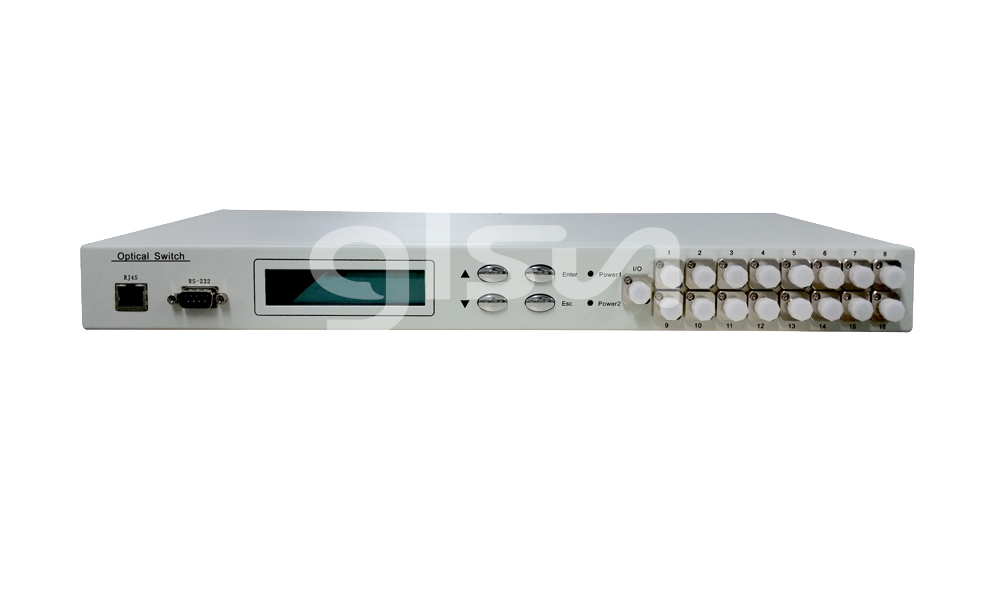

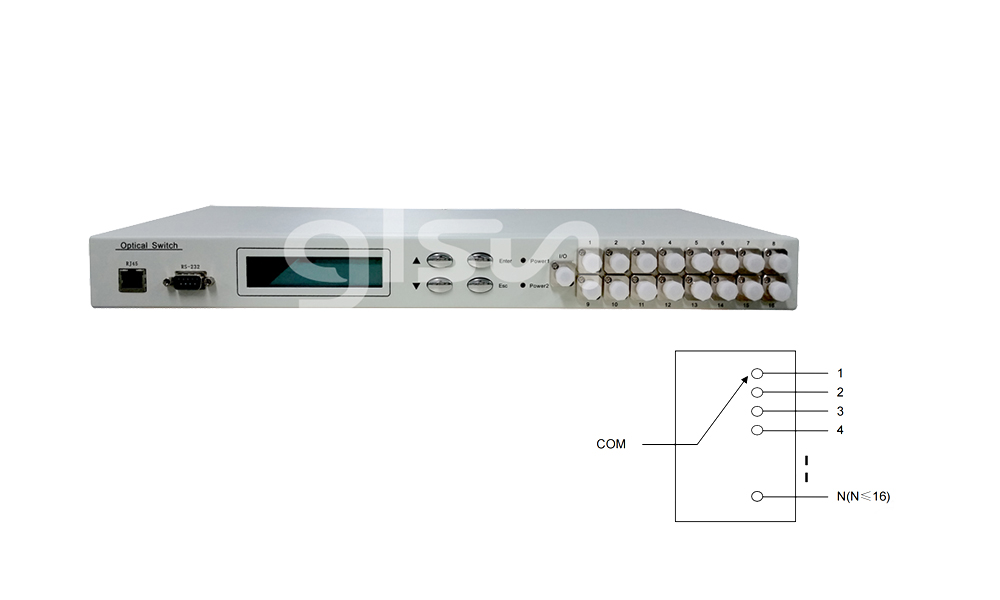

GLSUN 1xN(N≤16) Rack-mounted Optical Switch is a kind of functional device to control and switch optical route and can be manually selected from front panel or controlled via RS232 port, Ethernet port and auto-scanned on certain frequency.



In optical fiber transmission system, rack mount optical switch is used for multi-channel fiber monitoring, multi light source/ detector selection, and optical fiber path protection etc. Besides, 1xN rackmount fiber optc switch is also used in optical fiber test system for optical fiber and its component test, outdoor cable test and multi-spot optical sensors monitoring system.



Features

·Low Insertion Loss and Fast Switching
·SerialNet, High Reliability, High Stability
·LCD Display
·RS232 Control and Ethernet Remote Management



Applications

·FITL
·Automatic Measurement
·Optical Network Remote Monitoring
·Cable Monitoring and Maintaining system



Specifications

Parameters

Unit

SUN-FSW-1 × N- 1U (N≤16)

Insertion Loss 1, 2

dB

Typ:1.0   Max:1.2

Wavelength Range

nm

850±40 / 1300±40

1260 ~ 1650

Test Wavelength

nm

850 / 1300

1310 / 1550

Return Loss 1, 2

dB

SM ≥ 45        MM ≥ 30

Crosstalk 1

dB

≥ 55

PDL

dB

≤0.1

WDL

dB

≤0.25

Repeatability

dB

≤ ±0.05

Durability



≥ 10 Million

Optical Power

mW

≤500

Switching Time

ms

≤10 ( sequence switch time of adjacent channel)

Operating

-5~+55

Storage Temperature

-40~+80

Relative Humidity

%

5 ~ 95

Monitoring Port



RJ45, RS232

Power Supply

V

AC:100~240V(50/60Hz ) or DC:36~72V

Chassis Type

mm

1U   L482.6 ×W250× H44

Remarks: Customization is available.

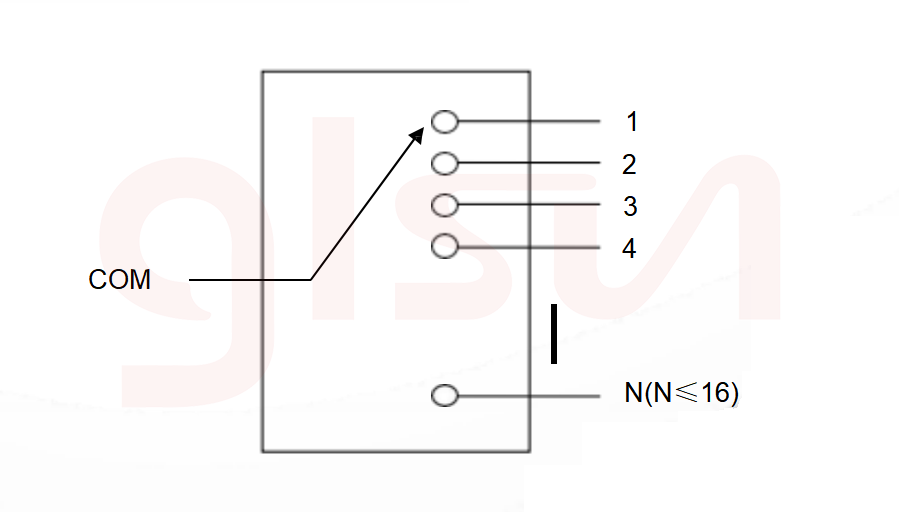

Optical Route

Ordering Information

SUN-FSW-1×N-A-B-C-D-E

N

A

B

C

D

E

Channel

Fiber Type

Test

Wavelength

Power Supply Mode

Connector

Chassis Type

≤ 16

SM: SM, 9/ 125

M5: MM, 50/ 125

M6: MM, 62.5/ 125

X: Others

850: 850nm

1310: 1310nm

1550: 1550nm

1310/ 1550:1310 / 1550nm

X:Others

AC: 100-240V

DC: 36-72V

AC/ DC: 100~240V /36~72V

AC/AC: Dual 100~240V

DC/DC: Dual 36~72V

X: Others

FP: FC/PC

FA: FC/APC

SP: SC/PC

SA: SC/APC

X: Others

1U:

L482.6 ×W250 × H44
