Polarization-maintaining (PM) optical switches are crucial components in optical communication and sensing systems, enabling precise and reliable optical signal management. Selecting the right switch demands a thorough understanding of key performance metrics. Here, we will explore these metrics to help you make an informed decision when selecting a PM optical switch for your specific needs.

1. Insertion Loss

Insertion loss is one of the most important metrics to consider when selecting a polarization maintaining optical switch. It refers to the amount of signal power lost when the switch is introduced into the optical path. Measured in decibels (dB), lower insertion loss values indicate better performance, as less signal power is lost. High insertion loss can result in degraded signal quality and reduced efficiency of the optical network. Therefore, when evaluating PM optical switches, it is crucial to choose one with minimal insertion loss to maintain signal integrity.

2. Return Loss

Return loss measures the amount of signal that is reflected back towards the source due to impedance mismatches within the switch. Also measured in dB, higher return loss values are desirable because they indicate less signal reflection. This is important because reflected signals can interfere with the original signal, leading to potential errors and reduced network performance. A PM optical switch with a high return loss ensures that the integrity of the signal is maintained, minimizing the risk of interference.

3. Polarization Extinction Ratio (PER)

The Polarization Extinction Ratio (PER) is a key parameter in PM optical switches, especially for applications where maintaining the polarization state is critical. PER is defined as the ratio of the power of the signal in the desired polarization state to the power in the orthogonal state. A high PER indicates that the switch effectively maintains the polarization of the optical signal, which is essential in coherent communication systems and other applications that rely on precise polarization control.

4. Switching Time

Switching time refers to the time it takes for a PM optical switch to change from one state to another, such as from one channel to another or from on to off. This metric is particularly important in dynamic optical networks where rapid signal routing is necessary. Switching time is typically measured in milliseconds (ms) or microseconds (μs). A switch with a fast switching time is crucial for applications requiring high-speed performance, as it minimizes delays and improves the overall efficiency of the network.

5. Wavelength Range

The wavelength range of a polarization-maintaining optical switch defines the spectral range over which the switch can operate effectively. In optical networks, data is transmitted across various channels using different wavelengths. Therefore, it is essential to select a PM optical switch that can handle the required wavelength range for your specific application. A wide operating wavelength range offers greater flexibility and compatibility with different types of optical signals and systems.

6. Durability and Reliability

Durability and reliability are critical factors in the long-term performance of PM optical switches. Durability is often measured by the number of switching cycles a device can perform without significant degradation in performance. Reliability, on the other hand, refers to the switch's ability to maintain consistent performance under varying environmental conditions. When selecting a PM optical switch, it is important to consider both of these factors to ensure that the switch can withstand the demands of your application over time, providing stable and reliable operation.

7. Power Handling Capability

The power handling capability of a polarization-maintaining optical switch is another crucial performance metric, particularly in high-power optical networks. This metric indicates the maximum optical power the switch can handle without experiencing performance degradation or damage. In networks where amplified signals are used, such as those incorporating Erbium-Doped Fiber Amplifiers (EDFAs), it is essential to choose a PM optical switch that can accommodate the high power levels to avoid potential failures.

8. Size and Form Factor

The size and form factor of a PM optical switch can significantly impact the design and integration of optical systems. Compact switches are often preferred in environments where space is limited, such as in data centers or optical network units (ONUs). However, the size should not compromise the switch's performance. When selecting a PM optical switch, consider the space available for installation and choose a switch that fits within those constraints while still delivering the required performance.

9. Environmental Stability

Environmental stability is another key consideration when selecting a PM optical switch. These switches often operate in environments with varying temperatures and conditions, so it is important to choose a switch that can maintain its performance across a wide range of environmental conditions. This includes stability in terms of temperature range, humidity tolerance, and resistance to shock and vibration. Opting for a PM optical switch with proven environmental stability ensures consistent performance even in challenging conditions.

Selecting the right PM optical switch for your application requires careful consideration of various performance metrics. By evaluating factors such as insertion loss, return loss, polarization extinction ratio, switching time, wavelength range, durability, power handling capability, size, and environmental stability, you can ensure that the switch you choose meets the specific needs of your optical network.

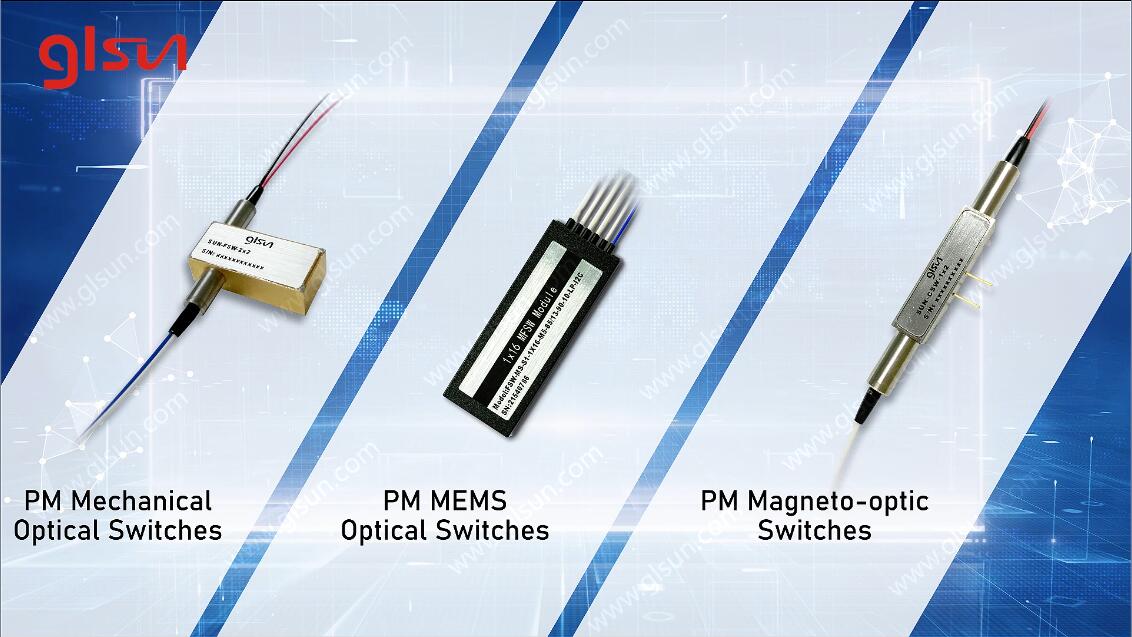

GLSUN offers a range of polarization-maintaining optical switches, which are designed to provide superior performance across these key metrics. GLSUN optical switches are designed to meet the demanding requirements of modern optical communication systems.
