As optical networks evolve to meet growing demands for high-speed and reliable data transmission, the Erbium-Doped Fiber Amplifier (EDFA) has become an essential technology. But what exactly is an EDFA, how does it function, and where is it applied?

An Erbium-Doped Fiber Amplifier (EDFA) is an optical amplifier that significantly enhances the strength of optical signals in fiber optic networks without converting them into electrical signals. This capability makes EDFAs indispensable for long-distance optical communication systems, particularly in Dense Wavelength Division Multiplexing (DWDM) networks.

EDFAs are engineered using a specialized optical fiber that is doped with erbium ions (Er3+), a rare-earth element. When pumped with light at a specific wavelength, these ions amplify weak optical signals, boosting their power and ensuring reliable data transmission over extended distances.

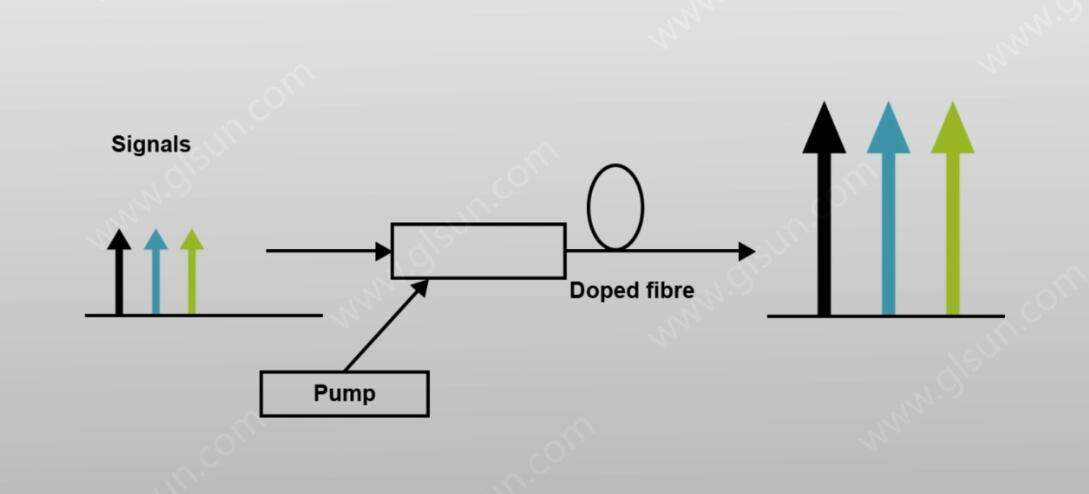

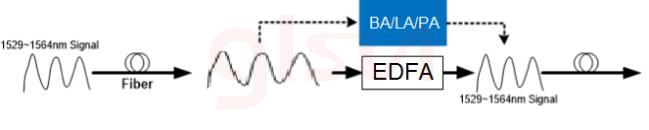

The working principle of an EDFA is based on stimulated emission, a fundamental concept in laser and optical amplification technologies. Here is a step-by-step breakdown of the EDFA operation:

Signal Input: An incoming weak optical signal enters the erbium-doped fiber.

Pump Laser Excitation: A pump laser injects light, typically at wavelengths of either 980 nm or 1480 nm, into the doped fiber. This pump energy excites the erbium ions to a higher energy state.

Stimulated Emission: As the weak optical signal passes through the fiber, it stimulates the excited erbium ions to release their stored energy in the form of amplified light at the same wavelength as the input signal.

Signal Output: The amplified signal exits the fiber, now significantly stronger than when it entered.

EDFAs are widely used in various optical network scenarios, including:

1. Long-Distance Communication

EDFAs are a cornerstone of long-haul optical transmission, ensuring signal strength is maintained across hundreds or even thousands of kilometers without the need for frequent regeneration.

2. DWDM Systems

Dense Wavelength Division Multiplexing (DWDM) technology relies on EDFAs to amplify multiple optical signals simultaneously, enabling efficient use of the available fiber bandwidth. This is particularly vital for internet backbones and high-capacity networks.

3. Metro and Access Networks

In metropolitan networks, EDFAs enhance signal strength to support data-intensive services like video streaming, cloud computing, and enterprise connectivity.

4. CATV Networks

EDFAs play a key role in Cable Television (CATV) networks by amplifying optical signals to distribute high-quality video content over large areas.

5. Research and Development

In laboratory settings and research environments, EDFAs are employed to study optical signal behavior, develop new communication technologies, and test high-capacity systems.

6. Aerospace Applications

Due to their robustness and ability to operate in harsh environments, EDFAs are also utilized in aerospace communication systems.

GLSUN offers state-of-the-art EDFA solutions, such as the OTS3000-EDFA, which are designed for optimal performance in DWDM systems and other high-capacity optical networks. These amplifiers are characterized by their:

- High Gain and Low Noise: Ensuring excellent signal quality.
- Compact Design: Allowing seamless integration into existing network infrastructure.
- Advanced Features: Including automatic gain control (AGC) for stable operation and remote management capabilities.

Whether your goal is to optimize long-distance data transmission, enhance DWDM system performance, or build a robust optical network, EDFAs are an indispensable component. With their proven reliability and advanced technology, GLSUN’s EDFA solutions are designed to meet the evolving demands of modern communication systems.
