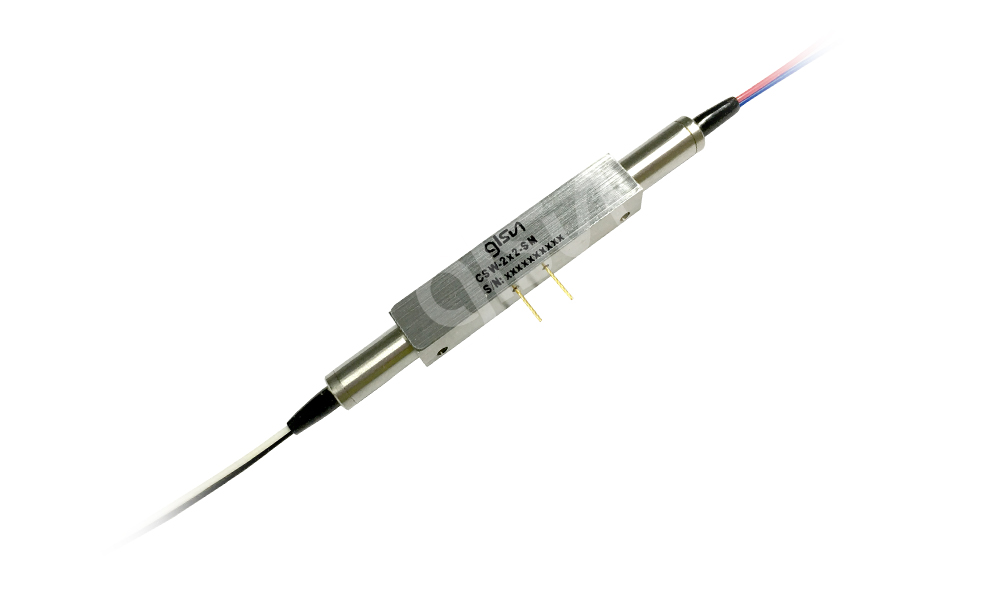

M2x2 Magnet Optical Switch
  • M2x2 Magnet Optical Switch
  • M2x2 Magnet Optical Switch

M2x2 Magnet Optical Switch

Switch Type:Magneto

Package Type:Device

Fiber Configuration:2x2

Wavelength Range:1520~1580nm

Dimension:(L)34.0×(W)7.5×(H)7.5 ±0.2mm

Product Details

The M2x2 magnet optical switch is connected to the optical path by connecting or blocking the optical signal. This 2x2 magneto optical switch has non-mechanical configurations and activated via an electrical control signal. The optical switch also has build-in circulator and isolator functions. Products are widely used in sensing system and aerospace equipment.



图片1.png Features

· Solid-state high speed
· High Stability, High Reliability
· Epoxy-free on Optical Path
· Fail-safe latching



 图片1.png Applications

· Aerospace equipment
· Configurable Add/Drop
· System monitoring
· Sensing system

Specifications

Parameters

Unit

M2x2

Wavelength Range

nm

1520 ~ 1580

Test Wavelength

nm

1550

Insertion Loss 1, 2

dB

≤ 1.2

TDL

dB

≤ 0.30

PDL

dB

≤ 0.20

Return Loss

dB

≥ 50

Crosstalk

dB

Bidirectional ≥ 20

Unidirectional ≥ 35

Repeatability

dB

≤ ±0.01

Switching Time

us

≤ 100

Pulse Duration

us

≥ 200

Durability

Cycles

≥10 Billions

Switch Type

NA

Latching

Operating Current

mA

≤ 200

Maximum Optical Power

mW

≤ 500

Operating Temperature

-5 ~ +70

Storage Temperature

-40 ~ +85

Dimension

mm

(L)34.0×(W)7.5×(H)7.5 ±0.2

Note:

1  Test at room temperature and SOP.

 2  Excluding connectors, 0.2dB for one pair connectors.



Optical Route

Ordering Information

SUN-CSW-M2x2-A-B-C-D-E-F-G

A

B

C

D

E

F

G

Switch Type

Fiber Type

Voltage

Wavelength

Tube Type

Fiber Length

Connector

B:Bidirectional

U:Unidirectional

SM:SM,9/125

X:Others

2.5:2.5V

5:5.0V

X:Others

1550:1550nm

X:Others

250:250um

900:900um

X:Others

05:0.5m±5cm

10:1.0m±5cm

X:Others

OO:None

FC:FC/PC

FA:FC/APC

SC:SC/PC

SA:SC/APC

LC:LC/PC

X:Others
