Polarization Maintaining M2x2 Magneto Optical Switch, Ultra-fast Optical Switches

Product Details

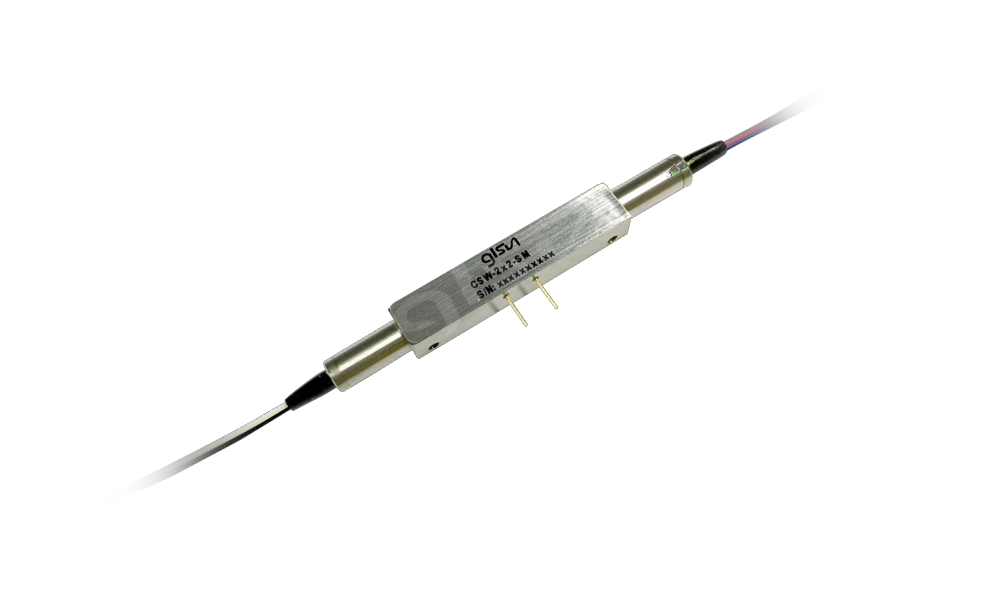

GLSUN polarization maintaining M2x2 magnet optical switch is connected to the optical path by connecting or blocking the optical signal. This polarization maintaining 2x2 magneto optical switch has non-mechanical configurations and activated via an electrical control signal. The optical switch also has build-in circulator and isolator functions. Products are widely used in aerospace equipment and sensing system.

Features
·Solid-state High Speed
·High Stability, High Reliability
·Epoxy-free on Optical Path
·Fail-safe Latching

Applications
·Aerospace Equipment
·Configurable Add/Drop
·System Monitoring
·Sensing System

Specifications

Parameters	Unit	SUN-CSW-PM-M2x2
Wavelength Range	nm	1280 ~ 1340	1520 ~ 1580
Test Wavelength	nm	1310	1550
Insertion Loss ^{1, 2}	dB	≤ 1.2
TDL	dB	≤ 0.30
ER	dB	≥ 18
Return Loss	dB	≥ 50
Crosstalk ¹	dB	Bidirectional ≥ 20
		Unidirectional ≥ 35
Repeatability	dB	≤ ±0.01
Switching Time	us	≤ 100
Pulse Duration	us	200 ~ 500
Durability	Cycles	≥10 Billions
Switch Type	NA	Latching
Operating Current	mA	≤ 200
Maximum Optical Power ³	mW	≤ 500
Operating Temperature ⁴	℃	-5 ~ +70
Storage Temperature	℃	-40 ~ +85
Dimension	mm	(L)34.0×(W)7.5×(H)7.5 ±0.2
Note: ¹Test at room temperature and SOP. ²Excluding connectors, 0.2dB for one pair connectors. ³High power(≤10W) version available. ⁴Wider temperature range(-40~110℃) version available.
