Attenuation Type：Dark or Bright
Attenuation Range：≥30dB
Operating Temperature：-5 ~ +75°C
Dimension（Dia× L）：(Φ) 5.5 x (L) 19mm

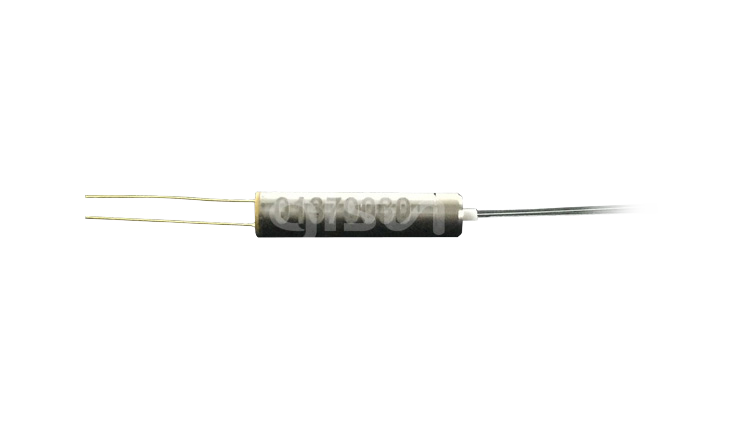

GLSUN's multimode MEMS Variable Optical Attenuator (VOA) is a precise and adjustable voltage-driven optical component. The key part of the component is MEMS chip; driving voltage produces electrostatic force to drive the micro-mirror on the chip, then to adjust output optical power. This MM MEMS VOA has excellent features such as compact dimension, low power consumption, fast responding, anti-shock, low WDL as well as low PDL.
Features
·Low Insertion Loss
·Compact
·High Attenuation
·Low Power Consumption
Applications
·Power Management
·Receiver protective
·Channel Balance
·Instrumentation
|
Parameters |
Unit |
SUN-MM-VOA |
|
Attenuation Type |
|
Bright / Dark |
|
Test Wavelength |
nm |
850 or 1310 |
|
Insertion Loss 1 |
dB |
≤ 0.8 |
|
Return Loss |
dB |
≥ 30 |
|
Attenuation Range |
dB |
≥ 30 |
|
Attenuation Resolution |
dB |
Continuous |
|
WDL2 |
dB |
@0dB ≤0.2 |
|
@20dB ≤ 1.5 |
||
|
TDL |
dB |
@10dB ≤1.0 |
|
@20dB ≤ 2.0 |
||
|
PDL |
dB |
@0dB ≤0.15 |
|
@20dB ≤0.30 |
||
|
Repeatability |
dB |
≤ 0.1 |
|
Operating Voltage |
V |
≤ 8 |
|
Optical Power |
mW |
≤ 500 |
|
Durability |
Cycles |
≥ 109 |
|
Response Time |
ms |
≤ 5 |
|
Operating Temperature |
℃ |
-5 ~ +70 |
|
Storage Temperature |
℃ |
-40 ~ +85 |
|
Relative Humidity |
% |
5 ~ 95 |
|
Dimension |
mm |
(Φ) 5.5 x (L) 19 |
|
Note: 1 Room temperature，Excluding connectors, add 0.2dB for one pair connectors. 2 1310 ±30nm or 1550 ±30nm. |
||
SUN-MM-VOA-A-B-C-D-E-F-G
|
A |
B |
C |
D |
E |
F |
|
Attenuation Type |
Test Wavelength |
Fiber Type |
Tube Type |
Fiber Length |
Connector |
|
BR： Bright DK： Dark |
850： 850nm 1310： 1310nm X： Others |
SM： SMF-28e X： Others |
25： 250um 90： 900um X： Others |
05： 0.5m±5cm 10： 1.0m±5cm X： Others |
OO：None FP：FC/PC FA：FC/APC SP：SC/PC SA：SC/APC LP：LC/PC LA：LC/APC X：Others |
