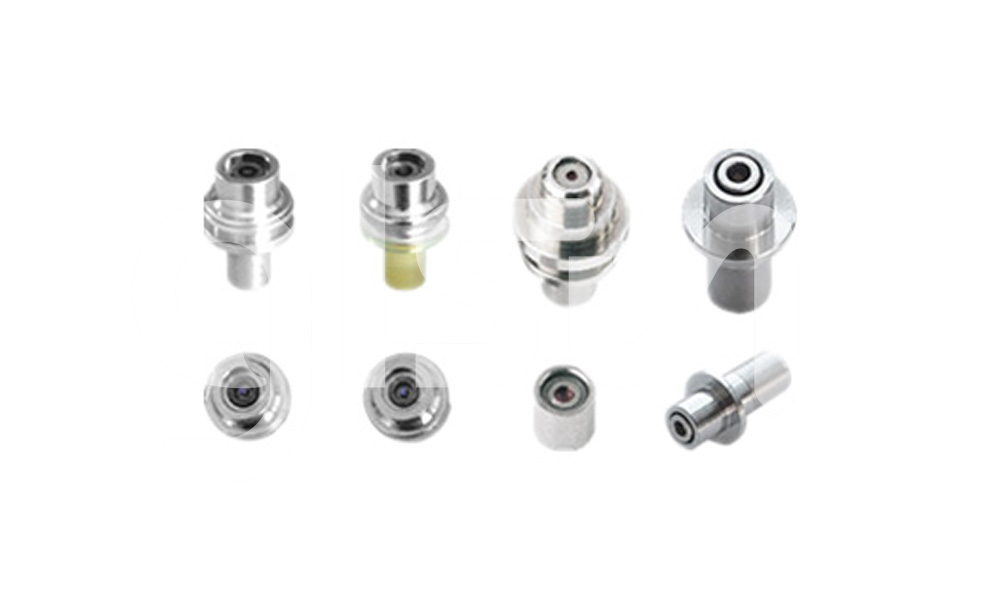

Isolator with Receptacle
  • Isolator with Receptacle

Isolator with Receptacle

Center Wavelength:1310/1550nm or Customized

Receptacle Type:LC, SC or Customized

Operating Temperature:-40 to +85 ℃

Product Details

 Receptacle Isolator



图片1.png Features

  •High isolation and low insertion loss

  •Compact size

  •RoHS 6/6 compliant



图片1.png Applications

  •Lasers coupling

  •Laser diode package



Specifications

Parameters

Unit

Specification

Center Wavelength (λc)

nm

1270~1610

Operating Wavelength

nm

±20

Isolation( 25°C)

Min

dB

>30

Overall wavelength and temperature Isolation

dB

>20

Insertion Loss (λ at 25°C)

Max

dB

0.30

Clear Aperture

mm

Φ0.4~Φ0.6 or others

Operating Temperature

-40 to +85

Storage Temperature

-40 to +95



Ordering Information

SUN-RFSI-A-B(C)-D

A

Center Wavelength

31:1310nm

55:1550nm

X:Customized

B

Receptacle Type

1:LC

2:SC

X:Customized

C

Receptacle Size

Customized

D

Material code
