Switch Type：Magneto
Package Type：Device
Fiber Configuration：2x2
Wavelength Range：1280 ~ 1340nm, 1520~1580nm
Fiber Type：PM1310 or PM1550 or Others
Dimension：(L)34.0×(W)7.5×(H)7.5 ±0.2

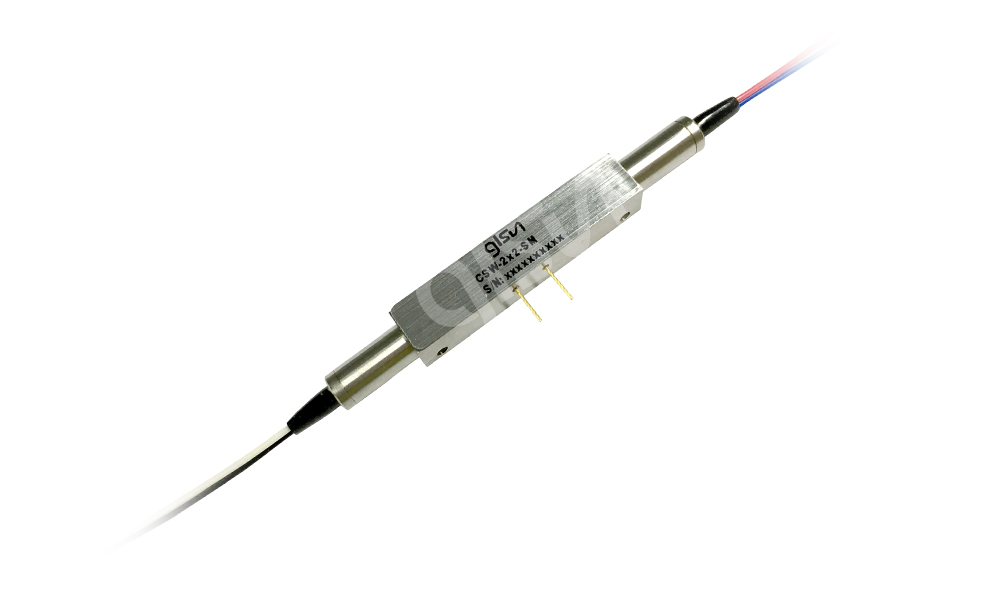

GLSUN high power polarization maintaining M2x2 magneto optical switch is connected to the optical path by connecting or blocking the optical signal. This high power magneto optical switch has non-mechanical configurations and activated via an electrical control signal. The 2x2 optical switch also has build-in circulator and isolator functions. These high power optical switches are widely used in sensing system and aerospace equipment.
Features
· Solid-state high speed
· High Stability, High Reliability
· Epoxy-free on Optical Path
· Fail-safe latching
Applications
· Aerospace equipment
· Configurable Add/Drop
· System monitoring
· Sensing system
Specifications
|
Parameters |
Unit |
SUN-CSW-HP-PM-M2x2 |
|
|
Wavelength Range |
nm |
1280 ~ 1340 |
1520 ~ 1580 |
|
Test Wavelength |
nm |
1310 |
1550 |
|
Insertion Loss 1, 2 |
dB |
≤ 1.2 |
|
|
TDL |
dB |
≤ 0.30 |
|
|
ER |
dB |
≥ 18 |
|
|
Return Loss |
dB |
≥ 50 |
|
|
Crosstalk 1 |
dB |
Bidirectional ≥ 20 |
|
|
Unidirectional ≥ 35 |
|||
|
Repeatability |
dB |
≤ ±0.01 |
|
|
Switching Time |
us |
≤ 100 |
|
|
Pulse Duration |
us |
200 ~ 500 |
|
|
Durability |
Cycles |
≥10 Billions |
|
|
Switch Type |
NA |
Latching |
|
|
Operating Current |
mA |
≤ 200 |
|
|
Maximum Optical Power 3 |
W |
10 |
|
|
Operating Temperature 4 |
℃ |
-5 ~ +70 |
|
|
Storage Temperature |
℃ |
-40 ~ +85 |
|
|
Dimension |
mm |
(L)34.0×(W)7.5×(H)7.5 ±0.2 |
|
|
Note: 1 Test at room temperature and SOP. 2 Excluding connectors, 0.2dB for one pair connectors. 3 High power(≤10W) version available. 4 Wider temperature range(-40~110℃) version available. |
|||
SUN-CSW-HP-PM-M2x2-A-B-C-D-E-F-G
|
A |
B |
C |
D |
E |
F |
G |
|
Switch Type |
Fiber Type |
Voltage |
Wavelength |
Tube Type |
Fiber Length |
Connector |
|
B：Bidirectional U：Unidirectional |
PM13：PM1310 PM15：PM1550 X：Others |
2.5：2.5V 5：5.0V X：Others |
1310：1310nm 1550：1550nm X：Others |
250：250um 900：900um X：Others |
05：0.5m±5cm 10：1.0m±5cm X：Others |
OO：None FA：FC/APC（Align to slow axis） |
