Switch Type：Magneto
Package Type：Device
Fiber Configuration：1x8
Wavelength Range：1280 ~ 1340nm, 1520~1580nm
Fiber Type：PM1310 or PM1550 or Others

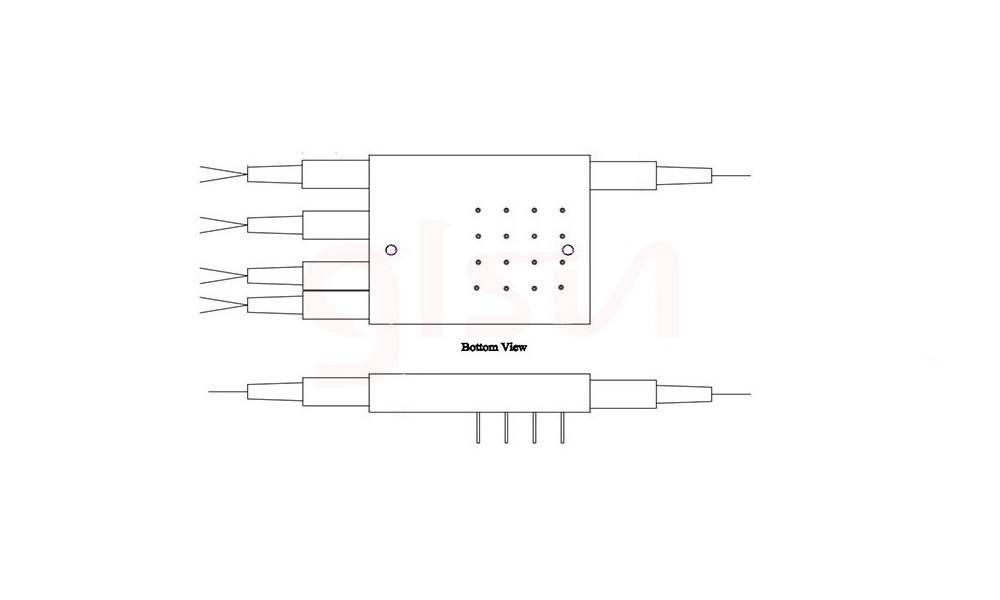

Dimension：(L)50×(W)20×(H)8 ±0.2mm
GLSUN high power polarization maintaining M1x8 magneto optical switch is connected to the optical path by connecting or blocking the optical signal. This high power magneto optical switch has non-mechanical configurations and activated via an electrical control signal. The 1x8 optical switch also has build-in circulator and isolator functions. These high power optical switches are widely used in sensing system and aerospace equipment.
Features
· Solid-state high speed
· High Stability, High Reliability
· Epoxy-free on Optical Path
· Fail-safe latching
Applications
· Aerospace equipment
· Configurable Add/Drop
· System monitoring
· Sensing system
Specifications
|
Parameters |
Unit |
SUN-CSW-PM-M1x8 |
|
|
Wavelength Range |
nm |
1280 ~ 1340 |
1520 ~ 1580 |
|
Test Wavelength |
nm |
1310 |
1550 |
|
Insertion Loss 1, 2 |
dB |
≤ 2.0 |
|
|
TDL3 |
dB |
≤ 0.30 |
|
|
ER |
dB |
≥ 18 |
|
|
Return Loss |
dB |
≥ 50 |
|
|
Crosstalk 1 |
dB |
≥ 40 |
|
|
Repeatability |
dB |
≤ ±0.01 |
|
|
Switching Time |
us |
≤ 100 |
|
|
Pulse Duration4 |
us |
200 ~ 500 |
|
|
Durability |
Cycles |
≥10 Billions |
|
|
Switch Type |
NA |
Latching |
|
|
Operating Current |
mA |
≤ 200 |
|
|
Maximum Optical Power |
mW |
≤ 500 |
|
|
Operating Temperature |
℃ |
-5 ~ +70 |
|
|
Storage Temperature |
℃ |
-40 ~ +85 |
|
|
Dimension |
mm |
(L)50×(W)20×(H)8 ±0.2 |
|
|
Note: 1.Test at room temperature and SOP. 2. Excluding connectors, 0.2 dB for one pair connectors. 3. Comparison with room temperature. 4. Magneto optic switches are powered by pulse voltage instead of continuous voltage. 5. High Power(≤ 10W) version available. |
|||
SUN-CSW-PM-M1x8-A-B-C-D-E-F-G
|
A |
B |
C |
D |
E |
F |
G |
|
Switch Type |
Fiber Type |
Voltage |
Wavelength |
Tube Type |
Fiber Length |
Connector |
|
B：Bidirectional U：Unidirectional |
PM13：PM1310 PM15：PM1550 X：Others |
2.5：2.5V X：Others |
1310：1310nm 1550：1550nm X：Others |
250：250um 900：900um X：Others |
05：0.5m±5cm 10：1.0m±5cm X：Others |
OO：None FA：FC/APC（Align to slow axis） |
