Switch Type：Mechanical
Package Type：Device
Fiber Configuration：2x2
Wavelength Range：1310±50nm or 1550±50nm
Dimension：(L)27.0×(W)12.6×(H)8.2 ±0.2mm

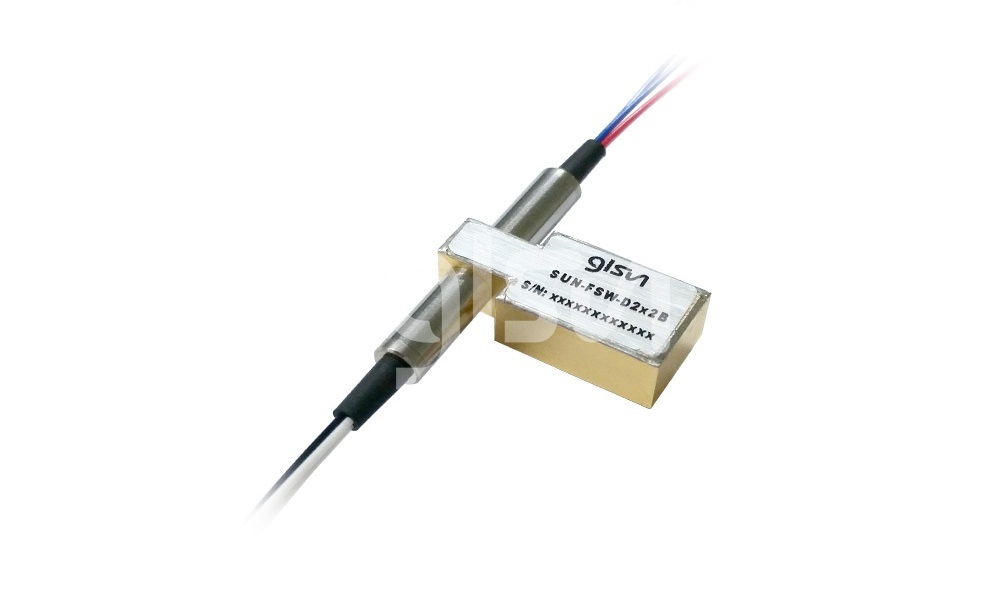

GLSUN's polarization maintaining (PM) D2x2B optical switch is a critical component in optical networks and sensing applications that require precise polarization control, fast switching, and high reliability across two input and two output channels. Its bidirectional functionality further enhances its flexibility in complex optical systems.
Features
· Low Insertion Loss
· Wide Wavelength Range
· Low Crosstalk
· High Stability, High Reliability
· Epoxy-free on Optical Path
· Latching and Non-latching
Applications
· R&D in Laboratory
· System Monitoring
· OADM
· MAN (Metropolitan Area Network)
· Network Security and Monitoring
Specifications
|
Parameters |
Unit |
SUN-FSW-PM-D2×2BG |
|
Wavelength Range |
nm |
1310±50 or 1550±50 |
|
Test Wavelength |
nm |
1310 or 1550 |
|
Insertion Loss 1, 2 |
dB |
≤ 1.0 |
|
Return Loss 1, 2 |
dB |
≥ 50 |
|
Crosstalk 1 |
dB |
≥ 55 |
|
PDL |
dB |
≤ 0.05 |
|
WDL |
dB |
≤ 0.25 |
|
ER |
dB |
≥ 18 |
|
Repeatability |
dB |
≤ ±0.02 |
|
Operating Voltage |
V |
3.0 or 5.0 |
|
Durability |
Cycles |
≥10 Million |
|
Switching Time |
ms |
≤ 8 |
|
Optical Power 3 |
mW |
≤ 500 |
|
Operating Temperature 4 |
℃ |
-5~ +70 |
|
Storage Temperature |
℃ |
-40 ~ +85 |
|
Relative Humidity |
% |
5 ~ 95 |
|
Weight |
g |
14 |
|
Dimension |
mm |
(L)27.0×(W)12.6×(H)8.2 ±0.2 |
|
Note: 1 With room temperature and SOP. 2 Excluding connectors. 3 The optical power can be customized to ≤ 10W. 4 The Operating temperature range can be customized from -40 to 85 ℃. |
||
SUN-FSW-PM-D2×2BG-A-B-C-D-E-F-G
|
A |
B |
C |
D |
E |
F |
G |
|
Fiber Type |
Operating Voltage |
Switch Type |
Test Wavelength |
Tube Type |
Fiber Length (Include connector) |
Connector |
|
PM13:PM1310 PM15:PM1550 X:Others |
3:3V 5:5V |
L:Latching N:Non-latching |
1310:1310nm 1550:1550nm X:Others |
25:250um 90:900um X:Others |
05:0.5m±5cm 10:1.0m±5cm 15:1.5m±5cm X:Others |
OO:None FA:FC/APC(Align to slow axis)
|
