Operating Wavelength：1290 ~ 1330nm
Working Mode：AGC/APC
Connector Type：LC/PC
Storage Temperature：-20 ~ +70
Dimension：160×200×21（WxDxH）
OTS3000-SOA Semiconductor Optical Amplifier
GLSUN OTS3000-SOA is a kind of function card in optical communication integrated platform. It applies O band 100GE high speed optical signal amplification to prolong its transmission distance when the optical signal is not enough to meet the transmission distance. Its maximal rate can be 160Gb/s to support one optical link and two optical link amplification, users can choose one optical input with one output amplification or two optical input with two output amplification.
Features
.ModularizedDesign, CompactSize, SupportHot Plug.
.HighGain, LowNoise, GoodGainFlatness.
.Support LAN WDMTransmissionNetworkApplication.
.GainBandwidthRange is 1290~1330nm.
.AutomaticallyAdjustingGain, theGainValue isMore than 13dB.
.WorkingMode: APC, AGC etc.
Applications
·LAN WDM Transmission Network Application

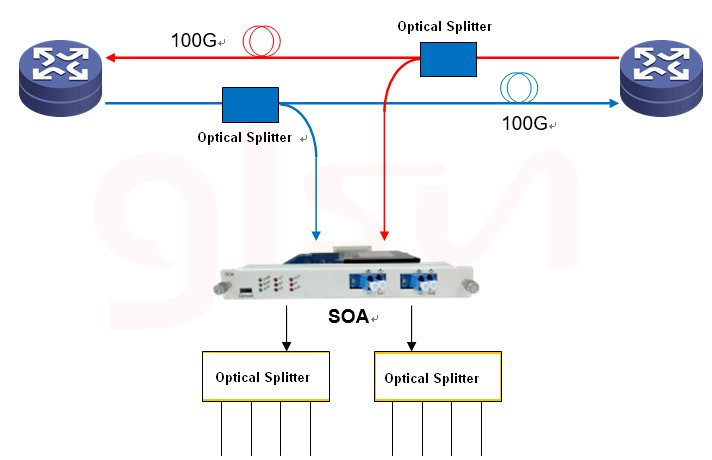

.Optical Signal Power Amplification Before its Split-flow
.Optical Signal Power Amplification Before the Optical Receiver Receives it
|
Parameters |
Unit |
OTS3000-SOA1 |
OTS3000-SOA2 |
|
|
Dimension |
mm |
160×200×21（WxDxH） |
||
|
Maximal Power Consumption |
W |
12 |
23 |
|
|
Input Power (total power) |
dBm |
-16 ~ 5 |
||
|
Gain |
dB |
13 |
||
|
Saturated Output Power (total power) |
dBm |
10 |
||
|
Operating Wavelength （100G） |
nm |
1290 ~ 1330 |
||
|
Flatness |
dB |
≤ 1.5 |
||
|
Noise Figure |
dB |
≤ 7.5 |
||
|
Return Loss |
dB |
≤ 45 |
||
|
Input/Output Isolation |
dB |
≥ 30 |
||
|
Polarization Dependent Gain |
dB |
≤ 0.3 |
||
|
Working Mode |
|
AGC/APC |
||
|
Connector Type |
|
LC/PC |
||
|
Operating Temperature |
℃ |
-5 ~ +55 |
||
|
Storage Temperature |
℃ |
-20 ~ +70 |
||
|
Relative Humidity |
|
5% ~ 95% (non-condensing) |
||
|
A |
B |
C |
D |
E |
|
Amplifier Type |
Saturated Output Power |
Maximal Gain |
Input Power Range |
Connector Type |
|
SOA1: 1 optical link amplification SOA2: 2 optical link amplification X: Others |
10: +10dBm Max X: Others |
G13: 13dB Max G15: 15dB Max X: Others |
A：-16 dBm ~ +5 dBm X: Others |
LP: LC/PC X: Others |
