Switch Type：Mechanical
Package Type：Module
Fiber Configurations：1xN
Channel：1≤N≤128

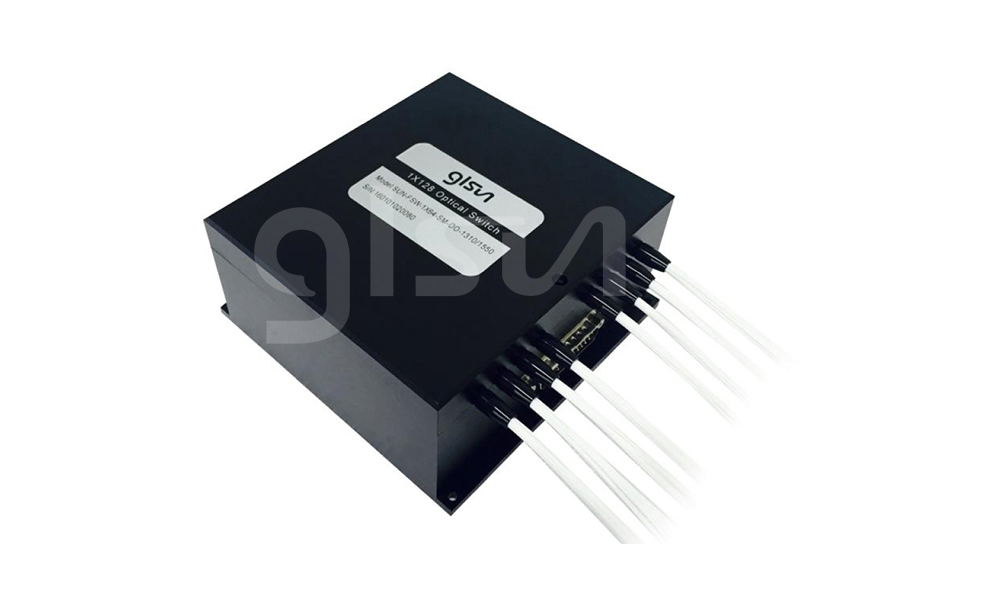

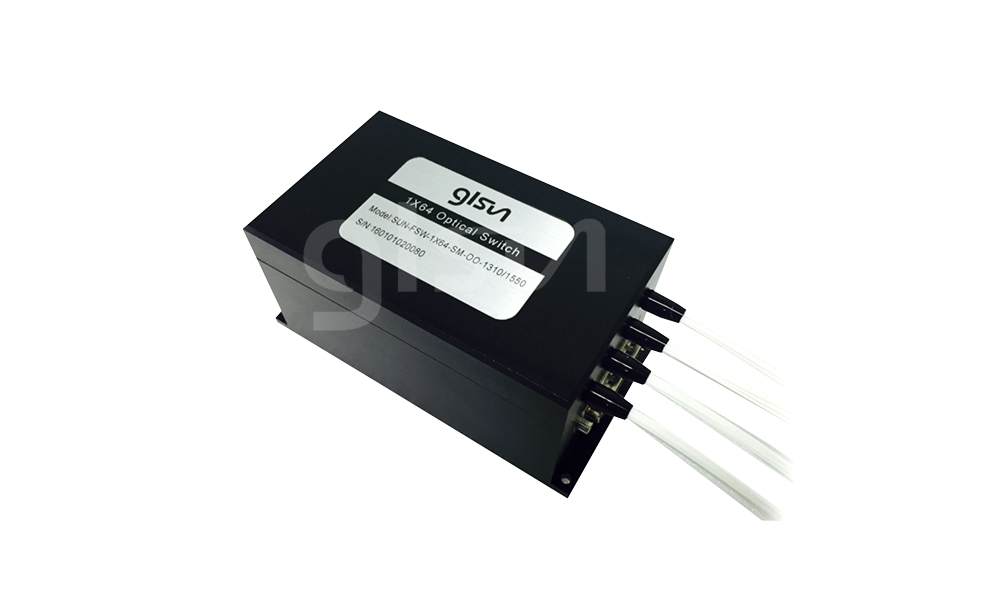

GLSUN's 1×N Optical switch is a kind of functional component, with the ability of switching optical route. In optical fiber transmission system, it is used for multi-channel fiber monitoring, multi light source / detector selection, and optical fiber path protection etc. Besides, it is also used in optical fiber test system for optical fiber and its component test, outdoor cable test and multi-spot optical sensors monitoring system.
Features
· Low Loss and High Reliability
· Parallel Interface or Serial Interface
· Modularized Design
· Epoxy-free on Optical Path
Applications
· Ring Network
· Remote Monitoring in Optical Network
· Testing of Fiber, Optical Component
|
Parameters |
Unit |
SUN-FSW-1×N |
|
|
Channel Number |
- |
N ≤ 64 |
65 ≤ N ≤ 128 |
|
Wavelength Range |
nm |
SM: 1260~ 1650 MM: 850±40/ 1300±40 or 1260~ 1650 |
|
|
Test Wavelength |
nm |
SM: 1310/ 1550 MM: 850/ 1300 or 1550 |
|
|
Insertion Loss 1, 2 |
dB |
Typ: 0.6 Max: 0.8 |
Typ: 1.0 Max: 1.2 |
|
Return Loss 1, 2 |
dB |
SM ≥ 50 MM ≥ 30 |
|
|
Crosstalk 1 |
dB |
SM ≥ 70 MM ≥ 55 |
|
|
PDL |
dB |
≤ 0.10 |
|
|
WDL3 |
dB |
≤ 0.25 |
|
|
Repeatability |
dB |
≤ ±0.05 |
|
|
Durability |
Cycles |
≥ 10 Million |
|
|
Switching Time |
ms |
10×( n-m ) + 5 ( from port m to n, n>m ) |
|
|
10×( n-m ) + 30 ( from port n to m, n>m ) |
|||
|
Optical Power |
mW |
≤ 500 |
|
|
Operating Temperature |
℃ |
-20 ~ +70 |
|
|
Storage Temperature |
℃ |
-40 ~ +85 |
|
|
Relative Humidity |
% |
5 ~ 95 |
|
|
Dimension |
mm |
135×44×32（N≤8） 135×64×32（N≤16） 184×78×36（N≤16） 150×80×32（N≤16） 150× 120×32（N≤32） 150×80×70（N≤64） 150× 150×70（N≤128） |
|
|
Control Interface |
- |
Parallel port / Serial port (TTL/RS232 optional) |
|
|
Note: 1 Within operating temperature and SOP. 2 Excluding Connectors. 3 Only applicable to testing wavelengths. |
|||
SUN-FSW-1×N(N≤128)-A-B-C-D-E-F-G
| N | A | B | C | D | E | F | G |
| Channel | Fiber Type | Test | Tube Type | Fiber Length (Include Connector） |
Connector | Dimension | Control Interfac |
| 2~128 | SM: 9/125um M5: 50/125um M6: 62.5/12 5um X: Other |
1300: 1300nm 1310: 1310nm 1550: 1550nm 1315: 1310/1550nm 850: 850nm 8513: 850/1300nm X: Other |
90: 900um X: Other |
05: 0.5±0.05m 10: 1.0±0.05m 15: 1.5±0.05m X: Other |
OO: None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC LP: LC/PC LA: LC/APC X: Other |
15: N≤8 135×44×32-DB9-F 02: N≤16 135×64×32-DB9 12: N≤16 184×78×36-DB9-F 23: N≤16 150×80×32-DB15 24: N≤64 150×80×70-DB25 25: N≤16 150×80×32-DB25 26: N≤128 150×150×70-DB25 29: N≤32 150×120×32-DB25 X: Other |
P： Parallel port U： TTL Serial port R： RS232 Serial port X： Other |
