Switch Type：Mechanical
Package Type：Module

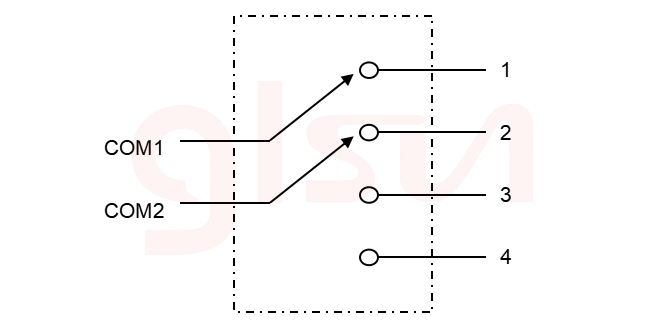

Fiber Configuration：2x4
Wavelength Range：850±40 / 1300±40; 1260 ~ 1650nm
Dimension：(L)95×(W)76×(H)14 ±0.2mm

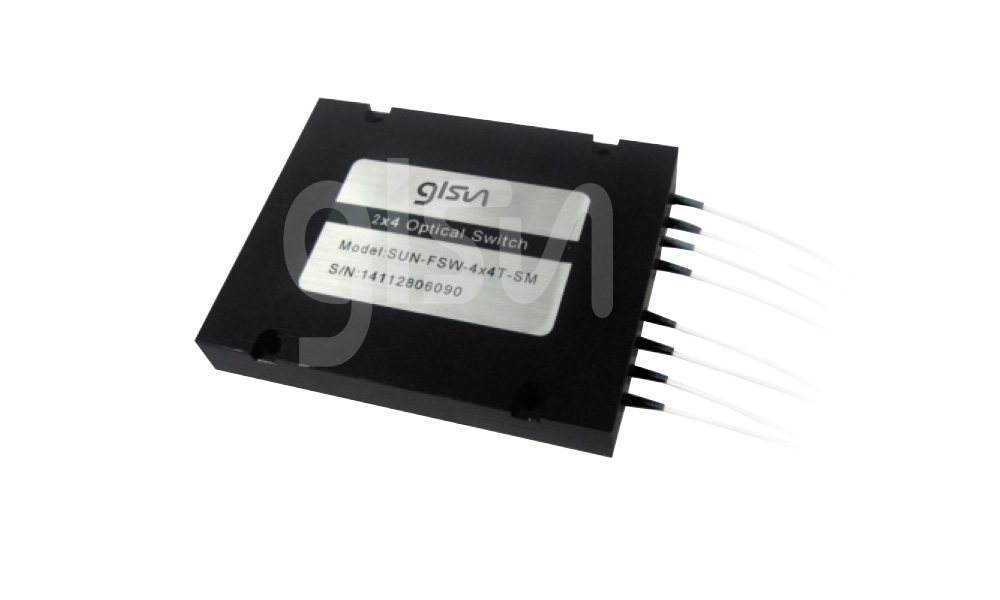

SUN-FSW-2×4 Optical Switch is an ideal component for OADM, OXC, system monitoring and protection. With compact package, this fiber optic switch can be easy to integrate into a high density optical communication system.
Features
·Wide Wavelength Range
·Low Crosstalk
·High Stability, High Reliability
·Epoxy-free on Optical Path
Applications
·R&D in Laboratory
·System Monitoring
·OADM
·OXC
|
Parameters |
Unit |
SUN-FSW-2×4 |
|
|
Wavelength Range |
nm |
850±40 / 1300±40 |
1260 ~ 1650 |
|
Test Wavelength |
nm |
850 / 1300 |
1310 / 1550 |
|
Insertion Loss |
dB |
Typ: 1.5 Max: 1.8 |
|
|
Return Loss |
dB |
MM ≥ 30 SM ≥ 50 |
|
|
Crosstalk |
dB |
MM ≥ 35 SM ≥ 55 |
|
|
PDL |
dB |
≤ 0.15 |
|
|
WDL |
dB |
≤ 0.35 |
|
|
Repeatability |
dB |
≤ ±0.05 |
|
|
Power Supply |
V |
5.0 ± 5% |
|
|
Durability |
Cycles |
≥ 10 Million |
|
|
Switching Time |
ms |
≤8 |
|
|
Optical Power |
mW |
≤500 |
|
|
Operating Temperature |
℃ |
-5 ~ +70 |
|
|
Storage Temperature |
℃ |
-40 ~ +85 |
|
|
Relative Humidity |
% |
5 ~ 95 |
|
|
Dimension |
mm |
(L)95×(W)76×(H)14 ±0.2 |
|
SUN-FSW-2×4-A-B-C-D-E-F
|
A |
B |
C |
D |
E |
F |
|
Fiber Type |
Switch Type |
Test Wavelength |
Tube Type |
Fiber Length (Include connector) |
Connector |
|
SM: SM, 9/125 M5:MM, 50/125 M6:MM, 62.5/125 X: Others |
L: Latching X: Others |
850: 850nm 1310: 1310nm 1550: 1550nm 1310/1550:1310/1550nm X:Others |
90:900um X: Others |
05: 0.5m±5cm 10: 1.0m±5cm 15: 1.5m±5cm X: Others |
OO:None FP: FC/PC FA:FC/APC SP: SC/PC SA:SC/APC STP:ST/PC STA:ST/APC LP: LC/PC LA: LC/APC X: Others |
