Channel No.：N ≤ 40
Switch Type：Latching
Fiber Type：SM（9/125um）
Connector：LC / UPC
Dimension：1U(482.6×300×44mm)

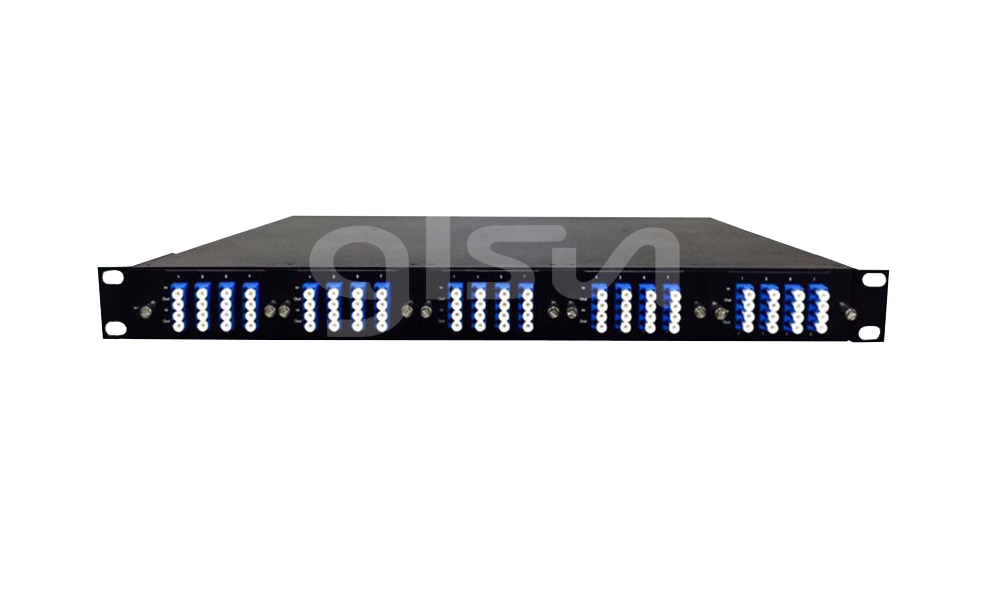

GLSUN N-1×1 Optical Switch is an optical path conversion device used in optical monitoring of the LAN multi-light source / detector automatically access and light multi-ports sensory dynamic monitoring system in optical transmission systems; as well as optical testing systems for fiber optics, optical devices, networks and fiber optic cable testing in open country project; optical devices assembly and adjusting, etc.
Features
·Low insertion loss, fast switching.
·Hot backup of double power supply, support hot-plugging.
·LED display panel. Visual display, convenient operation.
·Transparent transmission signal. High stability and reliability.
·Control multiple optical switching devices with a serial port.
·Support WEB、SNMP、TELNET、SSH, FTP log download,etc
|
Parameters |
Unit |
Indicators |
|
Channel No. |
|
N ≤ 40 |
|
Wavelength Range |
nm |
1260 ~ 1650 |
|
Test Wavelength |
nm |
1310 / 1550 |
|
Insertion Loss |
dB |
≤ 0.8 |
|
Return Loss |
dB |
≥ 50 |
|
Crosstalk |
dB |
≥ 55 |
|
WDL |
dB |
≤ 0.25 |
|
PDL |
dB |
≤ 0.1 |
|
Repeatability |
dB |
≤ 0.05 |
|
Switch Type |
dB |
Latching |
|
Switching Time |
ms |
< 8 |
|
Fiber Type |
|
SM（ 9/125um ） |
|
Connector |
|
LC / UPC |
|
Monitoring Port |
|
RJ45、USB（ RS-232 ） |
|
Working Power Supply （Plug-type） |
V |
AC: 100 ～ 240（ 50/60Hz ） or DC: 36 ～ 72 |
|
Power Consumption |
W |
＜ 20 |
|
Operating Temperature |
℃ |
-5 ～ 55 |
|
Storage Temperature |
℃ |
-40 ～ 75 |
|
Chassis Type |
|
1U standard 19 "rack（ 482.6×300×44mm ） |
|
Note：Customization is available. |
||
Rack Ordering Information：OSW2000-A-B-C
|
A |
B |
C |
|
|
Rack Type |
The Heart/Communication Interface |
The Power Supply Mode |
|
|
1U:482.6×300×44mm X: Others |
1：RJ45/USB（ RS-232 ） X: Others |
AC: 100~240V |
AC/AC: Dual 100~240V |
|
DC: 36~72V |
DC/DC: Dual 36~72V |
||
|
AC/DC: 100~240V & 36~72V |
X: Others |
||
Insert Disc Ordering Information：OSW-A-B-C-D
|
A |
B |
C |
D |
|
Channel No. |
Fiber Type |
Operating Wavelength |
Connector |
|
1~8 |
SM:SM 9/125 M5: MM 50/125 M6: MM 62.5/125 X: Others |
850: 850nm 1310: 1310nm 1550: 1550nm 1310/1550: 1310/1550nm X: Others |
LP: LC/UPC X: Others |
