Working Mode：Loopback mode / Forward mode
WDM Type：CWDM / DWDM
Storage Temperature：-20 ~ +70℃
Relative Humidity：5% ~ 95%
Dimension：160×200×21mm（WxDxH）
OTS3000-OEO Optical Electrical Optical Converter

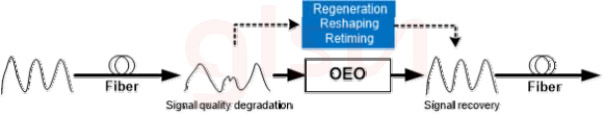

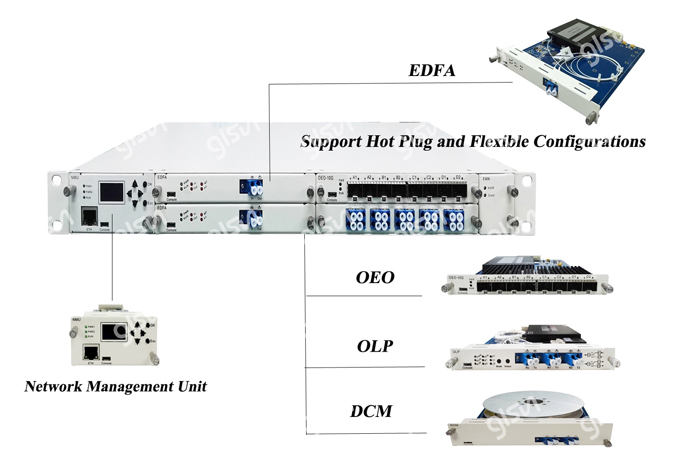

GLSUN OTS3000-OEO is a kind of function card in optical communication integrated platform. Its principle of optical-electron-optical transformation enables the optical signal be regenerated and amplified to realize SM and MM interconversion, OEO amplification. OEO becomes an ideal optical signal amplifying solution of low price and high performance choice, and can work with other function cards (such as DWDM,OADM,DCM and EDFA) together to construct the complete optical network transmission system.
Features
·Modularized design, Compact size, Support hot Plug and 3R function.
·Support GE 1.25Gb/s, 10GE 10.3Gb/s, 10GE 11.1Gb/s with FEC.
·Support STM-16 2.488Gb/s, STM-64 9.95Gb/s etc.
·Support 8 SFP or 8 SFP+ module at 10Gb/s.
Applications
·SM and MM interconversion, Wavelength conversion.
·Optical signal regeneration and amplification.
·Optical signal reshaping.
.jpg)
|
Parameters |
Unit |
SUN-OTS3000-OEO |
|
Dimension |
mm |
160×200×21（WxDxH） |
|
Maximal Power |
W |
3.5( without SFP module) |
|
Rate |
Gb/s |
Support Ethernet 1.25 Gb/s, 10.3Gb/s, 11.1Gb/s with FEC. Support STM-16 2.488Gb/s, STM-64 9.95Gb/s. Support others at 8.5Gb/s,10.5Gb/s,11.3Gb/s,11.7Gb/s rate. |
|
Maximal Slot Quantity |
|
≤8 |
|
Heat Dissipation |
|
Available to choose |
|
Coding Scheme |
|
NRZ |
|
3R Function |
|
Support 3R |
|
Alarm Management |
|
Provide Optical receiving power alarm, optical transmission alarm, temperature alarm etc. |
|
Working Mode |
|
Loopback mode / Forward mode |
|
Crossing Function |
|
Single board support the crossing function of group optical channel service |
|
WDM Type |
|
CWDM / DWDM |
|
Function Implementation |
|
Wavelength conversion, SM and MM interconversion, Optical signal regeneration and amplification |
|
Operating Temperature |
℃ |
-5 ~ +55 |
|
Storage Temperature |
℃ |
-20 ~ +70 |
|
Relative Humidity |
|
5% ~ 95% (non-condensing) |
|
A |
B |
C |
D |
|
Rate |
Working Mode |
Maximal Slot Quantity |
Heat Dissipation Ways |
|
10G: 10G rated SFP+ 2.5G: 2.5G rated SFP 1.25G: 1.25G rated SFP X: Others |
L: Loopback mode F: Forward mode X: Others |
8: 8 SFP max 4: 4 SFP max 2: 2 SFP max X: Others |
1: With heat dissipation 0: Without heat dissipation X: Others |
