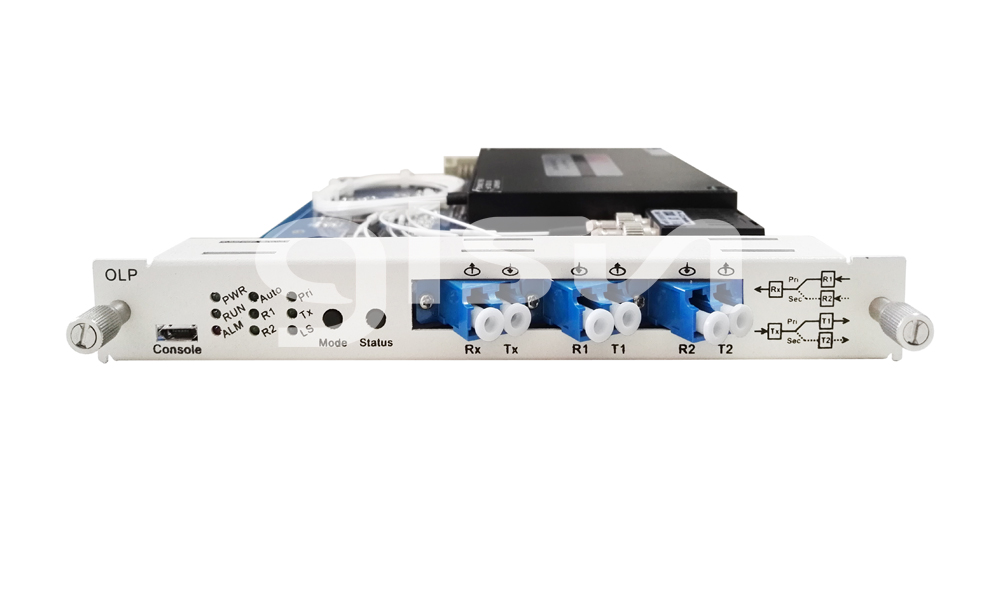

OTS3000-OLP Optical Line Protection System

GLSUN OTS3000-OLP optical line protection system is a kind of protector for optical line automatic switching in optical communication integrated platform. Optical Line Protection System(OLP) is an automatic monitoring and protection system which is independent of telecommunication transmission system and completely based on physical link of fiber. It has features such as independent transparent transmission, high reliability, high stability, fast fault protection, etc.

Features

·Modularized design, Compact size, Support hot Plug.
·Wide wavelength range, Low insertion loss, Low crosstalk, Fast switching speed.
·Transparent transmission, High Stability, High Reliability, Support path latching while there is no optical signal.

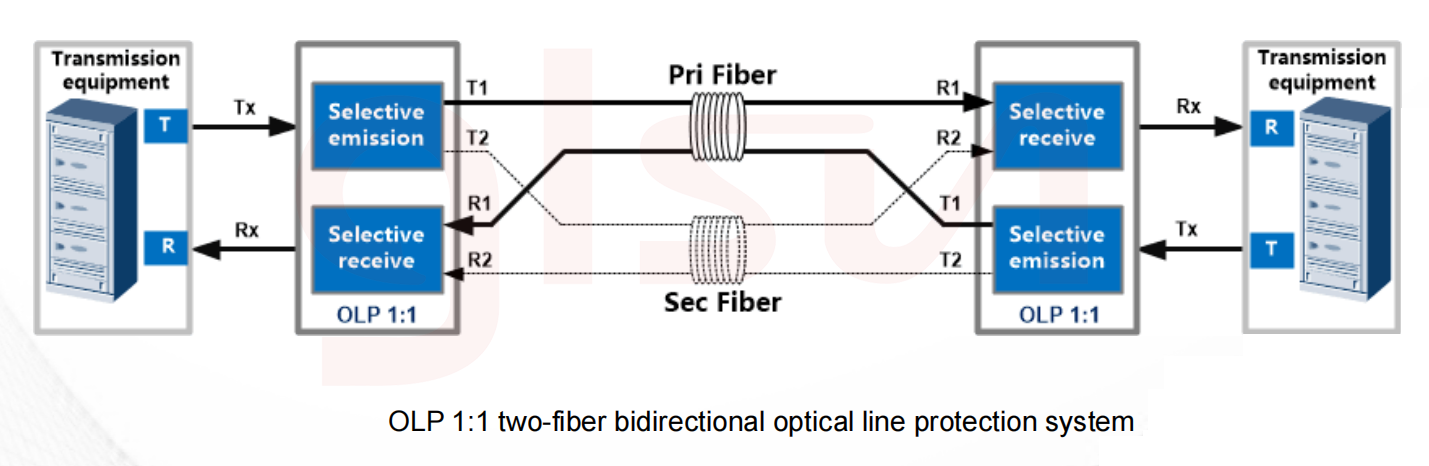

·Support the protecting ways: OLP 1: 1 mode, OLP 1+1 mode, two-fiber bidirectional, single fiber bidirectional.

Applications

·Transmission line protection
·Network Route protection

Specifications

Parameters	Unit	OTS3000-OLP		OTS3000-OLP BIDI
Dimension	mm	160×200×21（WxDxH）
Maximal Power Consumption	W	1
Wavelength Range	nm	1260 ~ 1650
Test Wavelength	nm	1310 / 1550
Protecting Ways		1:1	1+1	1:1	1+1
Insertion Loss	dB	TX<1.5 RX<1.5	TX<3.8 RX<1.5	Tx ≤ 1.5 Rx ≤ 1.5	Tx ≤ 3.8 Rx ≤1.5
Switching Time	ms	≤25	≤15	≤35	≤20
Crosstalk	dB	SM ≥ 50		SM ≥ 55
Return Loss	dB	SM ≥ 45
PDL	dB	≤ 0.20
WDL	dB	≤ 0.30
Power Monitoring Range	dBm	-40 to 23
Operating Temperature	℃	-5 ~ +55
Storage Temperature	℃	-20 ~ +70
Relative Humidity		5% ~ 95% (non-condensing)
