Center Wavelength：1064nm
Max. Optical Power：2W
Package Dimension：65×12×12mm

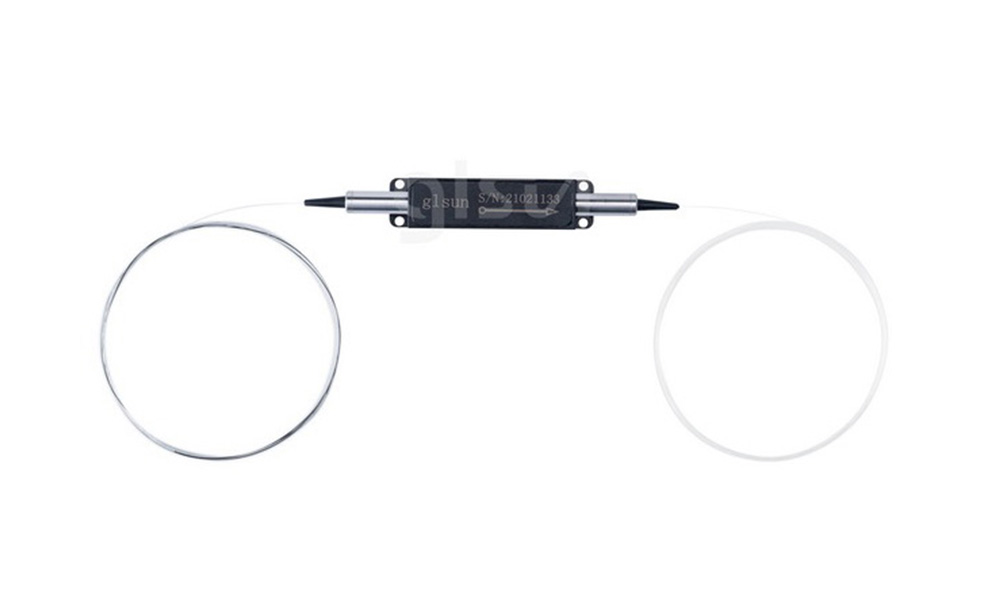

1064nm 2W Optical Isolator
1064nm 2w optical isolator is based on Faraday rotation effect to break the reciprocity of light transmission, so as to achieve the purpose of forward light passing and reverse light isolation. The specific Faraday optical rotation materials utilize for achieving high isolation and improving the efficiency of light transmission.
Features
· Low Insertion Loss and High Isolation
· High Extinction Ratio
· Return Loss and High Reliability
· Excellent Environmental Stability and Reliability
· RoHS 6/6 Compliant
Applications
· Amplifiers
· Fiber lasers
· Test instrument applications
|
Parameters |
Unit |
Specification |
|
Center Wavelength (λc) |
nm |
1064 |
|
Typ.Peak Isolation |
dB |
35 |
|
Min. Isolation at 23℃,λc all |
dB |
28 |
|
Typ.Insertion Loss,23℃ |
dB |
1.7 |
|
Max.Insertion,23℃ and input power 1 W |
dB |
2.5 |
|
Max.Insertion,23℃ and input power 2 W |
dB |
3.0 |
|
Min.Return Loss (I/O) |
dB |
50/50 |
|
Max. Optical Power |
W |
2 |
|
Max. Peak Power for ns Pulse |
KW |
10 |
|
Max. Tensile Load |
N |
5 |
|
Fiber Type |
|
HI 1060 Fiber |
|
Operating Temperature Range |
°C |
10 to +50 |
|
Storage Temperature Range |
°C |
0 to +60 |
|
Package Dimension (L×W×H) |
mm |
65×12×12 |
|
Note: 1. Customization is available. 2. IL is 0.5 db higher,RL is 5 db lower for each connector added. 3. The optical power handing capabling will be max 1w when the isolator is teminated with connectors |
||
IL －①① －② －③ －④ －⑤ －⑥ －⑦
|
①① |
② |
③ |
④ |
⑤ |
⑥ |
⑦ |
|
Wavelength |
Handling Power |
Connector Type |
Fiber Jacket |
Fiber Length |
Fiber Type |
Power Type |
|
06: 1064nm SS: Specify |
1: 1W 2: 2W |
1: FC/UPC 2: FC/APC 3: SC/UPC 4: SC/APC N:None S:Specify |
B: 250 um bare fiber L: 900 um bare fiber S: Specify |
1: 1.0 m S: Specify |
1: HI 1060 fiber S: Specify |
P:Pulsed C:Continuous wave |
