Switch Type：MEMS
Package Type：Rackmount
Fiber Configuration：MxN
Number：M≤32 N≤32
Dimension：1U, 2U, 4U
SUN-MEMS-MXN-LC Rack Optical Switch features low insertion loss, short switch time and high reliability. Moreover, it has LCD and panel buttons for easy operations, and RJ45 port for external controls. It supports various network protocols, including SNMP, TELNET etc.
Features
· Low Insertion Loss, Fast Switching Speed.
· High Stability.
· Thicken Sheet Metal Chassis, Rugged and Durable.
· Quickly Switch to the Selected Channel via Panel Button.
· Switch Channels via Panel Button or Programmed Command.
· Lock Panel Button via Programmed Command.
Applications
· Auto Switch of LAN Multi-light Source/Detector and Multi-sensing Dynamic Monitoring System.
· Optical Channels Monitoring or Control.
· Tests of Optical Fiber, Optical Components, Network and Field Optical Cables.
· Test System in Optical Fiber and Optical Components.
· Network Tests of Optical Fiber Transmission.
|
Parameter |
Unit |
SUN-MEMS-MXN |
|||
|
Min. |
Typ. |
Max. |
|||
|
Wavelength Range |
nm |
1260 |
1550 |
1650 |
|
|
Insertion Loss |
8x8 |
dB |
|
|
2.0 |
|
16x16 |
|
|
2.5 |
||
|
32x32 |
|
|
3.0 |
||
|
64x64 |
|
|
5.0 |
||
|
Return Loss |
dB |
45 |
|
|
|
|
Crosstalk |
dB |
55 |
|
|
|
|
PDL |
dB |
|
0.1 |
0.25 |
|
|
WDL |
dB |
|
|
0.5 |
|
|
TDL |
dB |
|
|
0.5 |
|
|
Switching Time |
ms |
|
|
30 |
|
|
Repeatability |
dB |
|
±0.05 |
|
|
|
Maximum Optical Power |
mW |
|
|
500 |
|
|
Durability |
Cycles |
109 |
|
|
|
|
Operating Temperature |
℃ |
-5 |
|
55 |
|
|
Storage Temperature |
℃ |
-20 |
|
70 |
|
|
Relative Humidity |
% |
5 |
|
95 |
|
|
Connector Type |
|
LC/PC or other |
|||
|
Monitoring Port |
|
RJ45 |
|||
|
Power Supply |
|
Redundant power: AC 100V~240V or DC 36~72V |
|||
|
Power Consumption |
W |
50 |
|||
|
Chassis |
mm |

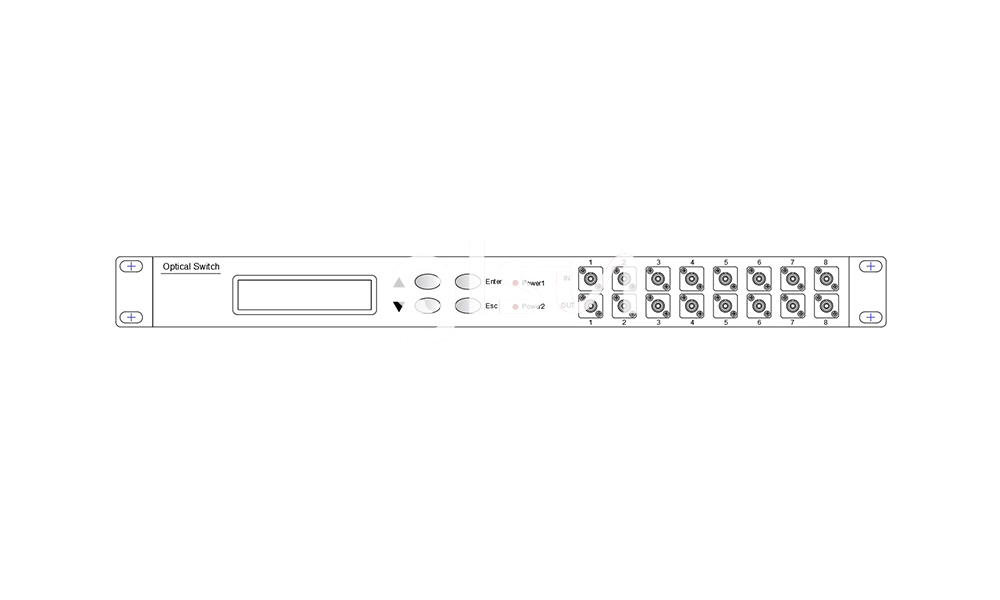

1U:483x303x44 （8x8） |
|||
|

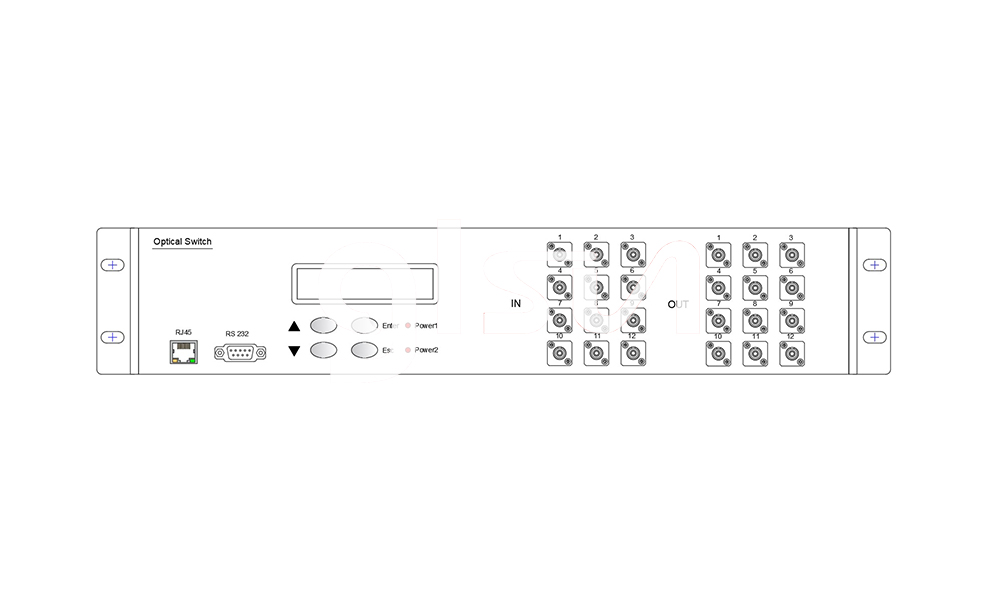

2U:483x303x89（16x16/32x32） |
|||||
|
4U:483x303x177（64x64） |
|||||
|
Note: Special design can be made on request. |
|||||
SUN-MEMS-MXN-A-B-C-D-E
|
A |
B |
C |
D |
E |
|
Fiber Type |
Test Wavelength |
Connector |
Power Supply |
Chassis Dimension |
|
SM:9/125 |
1310:1310nm 1550:1550nm 1310/1550: 1310/1550nm |
LP: LC/PC X: Others |
AC: 220V/50Hz DC: 48V AC/AC: double-220V DC/DC: double-48V AC/DC: 220V/48V |
1U: 482.6×303×44mm 2U: 482.6×303×89mm 4U: 482.6×500×177mm X: Others |
