Matrix Optical Switch
  • Matrix Optical Switch
  • matrix optical switches

Matrix Optical Switch

Channel No.:8/16/32

Wavelength Range:1260~1650nm

Test wavelength:1310/1550nm

Chassis:2U standard 19″ rack

Product Details

Description

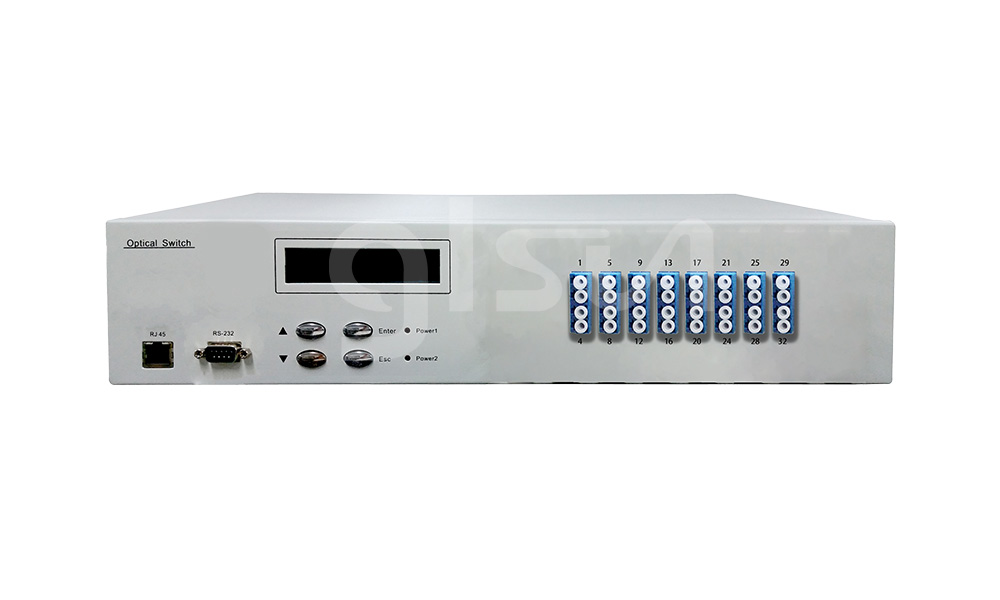

SUN-MEMS-8/16/32 Matrix Optical Switch is used to control and switch the optical path. The switch has serial port and RJ45 port for external controls. In the optical communication field, it is mainly used for many optical channels monitoring of optical transmission system, and auto switching of LAN multi-light source/detector and optical sensing multipoint dynamic monitoring system. The optical switch features low insertion loss, fast switching speed and high stability. It is equipped with LCD and panel button for easy operations, and serial port and RJ45 port for external controls.


Features
· Low Insertion Loss, High Reliability
· Fast Switching, High Stability
· Thicken Sheet Metal Chassis, Rugged and Durable
· Quickly Switch to the Selected Channel via Panel Button
· Switch Channels via Panel Button or Programmed Command
· Lock Panel Button via Programmed Command
· Support TCP/IP, RS232


Applications
· Auto switch of LAN multi-light source/detector and optical sensing multipoint dynamic monitoring system
· Optical channels monitoring or control
· Tests of optical fiber, optical components, network and field optical cables
· Test system in optical fiber and optical components
· Fiber transmission network test



Specifications

Parameter

Unit

Indicator

Channel No.

/

8/16/32

Wavelength Range

nm

1260~1650

Test wavelength

nm

1310/1550

Insertion Loss

Channel

8

16

32

dB

Typ:2.0

Max:2.5

Typ:2.5

Max:3.0

Return Loss

dB

≥45

Crosstalk

dB

≥50

PDL

dB

≤0.1

WDL

dB

≤0.25

Repeatability

dB

≤±0.05

Durability

cycle

≥ 109

Maximum Optical Power

mW

500

Switching Time

ms

≤50

Monitoring Port

/

RS 232, RJ45

Operating Temperature

-5 to +55

Storage Temperature

-20 to + 70

Power Supply

V

AC:100~240V/50~60Hz or DC 36~72V

Chassis

mm

2U standard 19″ rack (482.6×303×89mm)

Note: Customization can be supported.



Ordering Information

SUN-MEMS-M-A-B-C-D-E

M

A

B

C

D

E

Channel No.

Fiber Type

Test Wavelength

Connector

Operating Voltage

Chassis Dimension

M:

8/16/32



SM:

9/125



1310/1550:

1310/1550nm

1310:1310nm

1550:1550nm

X:other

FP:FC/PC

LP:LC/PC

AC:100~240V/50~60Hz

DC: 36~72V

AC/AC: double-100~240V/50~60Hz

DC/DC: double-36~72V

AC/DC: 100~240V/50~60Hz and 36~72V

2U:

482.6×303×89mm
