Switch Type：Magneto
Package Type：Device
Fiber Configuration：2x2
Wavelength Range：1280~1340nm, 1520~1580nm
Dimension：(L)34.0×(W)7.5×(H)7.5 ±0.2mm

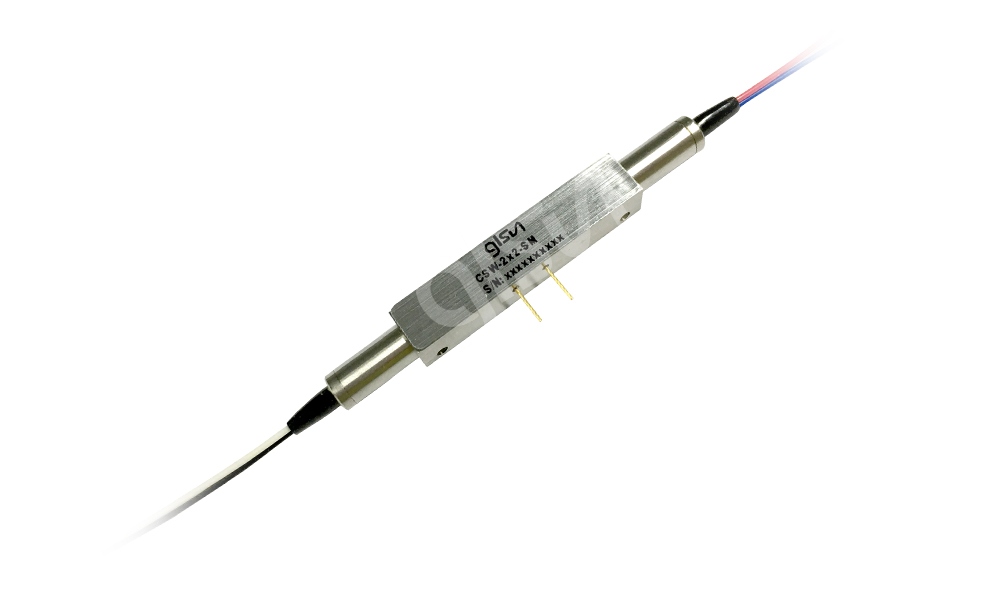

GLSUN high power M2x2 magneto optical switch is connected to the optical path by connecting or blocking the optical signal. The switch has non-mechanical configurations and activated via an electrical control signal. The switch also has build-in circulator and isolator functions. Products are widely used in aerospace equipment and sensing system. The switch is designed to withstand high-power /high-energy lasers in such applications as LIDAR.
Features
·Solid-state high speed
·High Stability, High Reliability
·Epoxy-free on Optical Path
·Fail-safe latching
Applications
·Optical switching
·Fault Protection
·Time Delay measurement
·System monitoring
·Sensing system
Specifications
|
Parameters |
Unit |
SUN-CSW-HP-M2x2 |
|
|
Wavelength Range |
nm |
1280 ~ 1340 |
1520 ~ 1580 |
|
Test Wavelength |
nm |
1310 |
1550 |
|
Insertion Loss 1, 2 |
dB |
≤ 1.2 |
|
|
TDL |
dB |
≤ 0.30 |
|
|
PDL |
dB |
≤ 0.20 |
|
|
Return Loss |
dB |
≥ 50 |
|
|
Crosstalk 1 |
dB |
Bidirectional ≥ 20 |
|
|
Unidirectional ≥ 35 |
|||
|
Repeatability |
dB |
≤ ±0.01 |
|
|
Switching Time |
us |
≤ 100 |
|
|
Pulse Duration |
us |
200 ~ 500 |
|
|
Durability |
Cycles |
≥10 Billions |
|
|
Switch Type |
NA |
Latching |
|
|
Operating Current |
mA |
≤ 200 |
|
|
Maximum Optical Power 3 |
W |
10 |
|
|
Operating Temperature 4 |
℃ |
-5 ~ +70 |
|
|
Storage Temperature |
℃ |
-40 ~ +85 |
|
|
Dimension |
mm |
(L)34.0×(W)7.5×(H)7.5 ±0.2 |
|
|
Note: 1 Test at room temperature and SOP. 2 Excluding connectors, 0.2dB for one pair connectors. 3 High power(≤10W) version available. 4 Wider temperature range(-40~110℃) version available. |
|||
SUN-CSW-HP-M2x2-A-B-C-D-E-F-G
|
A |
B |
C |
D |
E |
F |
G |
|
Switch Type |
Fiber Type |
Voltage |
Wavelength |
Tube Type |
Fiber Length |
Connector |
|
B： Bidirectional U： Unidirectional |
SM： SM，9/125 X： Others |
2.5： 2.5V 5： 5.0V X： Others |
1310： 1310nm 1550： 1550nm X： Others |
250： 250um 900： 900um X： Others |
05： 0.5m±5cm 10： 1.0m±5cm X： Others |
OO：None FC：FC/PC FA：FC/APC SC：SC/PC SA：SC/APC LC：LC/PC X：Others |
