Switch Type：Magneto
Package Type：Device
Fiber Configuration：1x8
Wavelength Range：1280~1340nm, 1520~1580nm

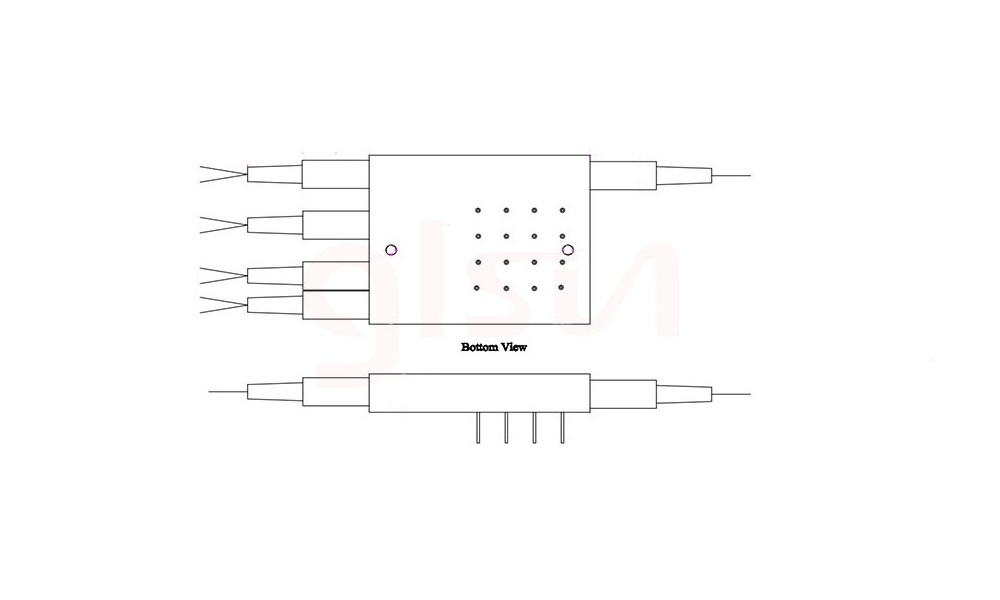

Dimension：(L)50.0 ×(W)20.0 ×(H)8 ±0.2mm
GLSUN high power M1x8 magneto optical switch is connected to the optical path by connecting or blocking the optical signal. This 1x8 magneto optical switch has non-mechanical configurations and activated via an electrical control signal. This fiber optic switch also has build-in circulator and isolator functions. Products are widely used in sensing system and aerospace equipment.
Features
·Solid-state high speed
·High Stability, High Reliability
·Epoxy-free on Optical Path
·Fail-safe latching
Applications
·Optical switching
·Fault Protection
·Time Delay measurement
·System monitoring
·Sensing system
Specifications
|
Parameters |
Unit |
SUN-CSW-M1x8 |
|
|
Wavelength Range |
nm |
1280 ~ 1340 |
1520 ~ 1580 |
|
Test Wavelength |
nm |
1310 |
1550 |
|
Insertion Loss 1, 2 |
dB |
≤ 2.0 |
|
|
TDL3 |
dB |
≤ 0.30 |
|
|
PDL |
dB |
≤ 0.20 |
|
|
Return Loss |
dB |
≥ 50 |
|
|
Crosstalk 1 |
dB |
≥ 40 |
|
|
Repeatability |
dB |
≤ ±0.01 |
|
|
Switching Time |
us |
≤ 100 |
|
|
Pulse Duration4 |
us |
200 ~ 500 |
|
|
Durability |
Cycles |
≥10 Billions |
|
|
Switch Type |
NA |
Latching |
|
|
Operating Current |
mA |
≤ 200 |
|
|
Maximum Optical Power |
mW |
≤ 500 |
|
|
Operating Temperature |
℃ |
-5 ~ +70 |
|
|
Storage Temperature |
℃ |
-40 ~ +85 |
|
|
Dimension |
mm |
(L)50.0 ×(W)20.0 ×(H)8 ±0.2 |
|
|
Note: 1. Test at room temperature and SOP. 2. Excluding connectors, 0.2dB for one pair connectors. 3. Comparison with room temperature. 4. Magneto optic switches are powered by pulse voltage instead of continuous voltage. 5. High Power(≤ 10W) version available. |
|||
SUN-CSW-M1x8-A-B-C-D-E-F-G
|
A |
B |
C |
D |
E |
F |
G |
|
Switch Type |
Fiber Type |
Voltage |
Wavelength |
Tube Type |
Fiber Length |
Connector |
|
B：Bidirectional U：Unidirectional |
SM：SM ，9/125 X：Others |
2.5：2.5V X：Others |
1310：1310nm 1550：1550nm X：Others |
250：250um 900：900um X：Others |
05：0.5m±5cm 10：1.0m±5cm X：Others |
OO：None FC：FC/PC FA：FC/APC SC：SC/PC SA：SC/APC LC：LC/PC X：Others |
