Parameters

Unit

SUN-MS-S1-1XN(≤32)-SM

Wavelength Range

nm

1260~1650

Test Wavelength

nm

1310/1550

Insertion Loss ^1,2,3

dB

0.6(TYP)  1.0(MAX)  N≤8

1.0(TYP)  1.6(MAX)  N≤16

1.6(TYP)  2.0(MAX)  N≤32

WDL ⁴

dB

≤0.3

PDL ^1,2

dB

≤0.15

TDL^1,2

dB

≤0.3

Return Loss ^1,2

dB

≥45

Crosstalk ^1,2,3

dB

≥50

Repeatability ⁵

dB

≤±0.05

Power Supply

V

4.8~12.5

Power Consumption

mW

≤500

Durability

Cycles

≥10⁹

Switch Time

ms

≤30

Transmission Power

mW

≤500

Operating Temperature

℃

-5~+70

Storage Temperature

℃

-40~+85

Dimension

mm

Type A: 39.1(L) x 24.7(W) x 11(H) ±0.2

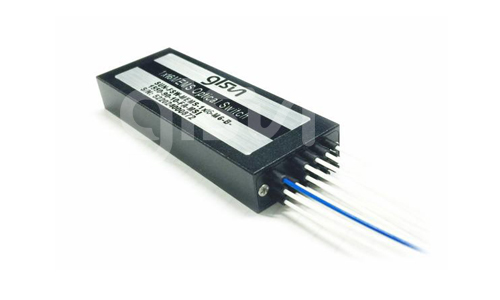

Type B: 65(L) x 24.7(W) x 11(H) ±0.2

Note:

1 Within operating temperature and SOP，MM CPR＞16.

2 Excluding connectors.

3 Power off isolation same as cross-talk.

4 WDL is specified in a ±20 nm of 1310nm,at 23°C.

5 Repeatability is defined after 100 cycles.
