Switch Type：MEMS
Package Type：Module
Fiber Configuration：MCS
Wavelength Range：1527nm; 1568nm
Dimension：220(L) x120(W) x15(H) ±0.2mm

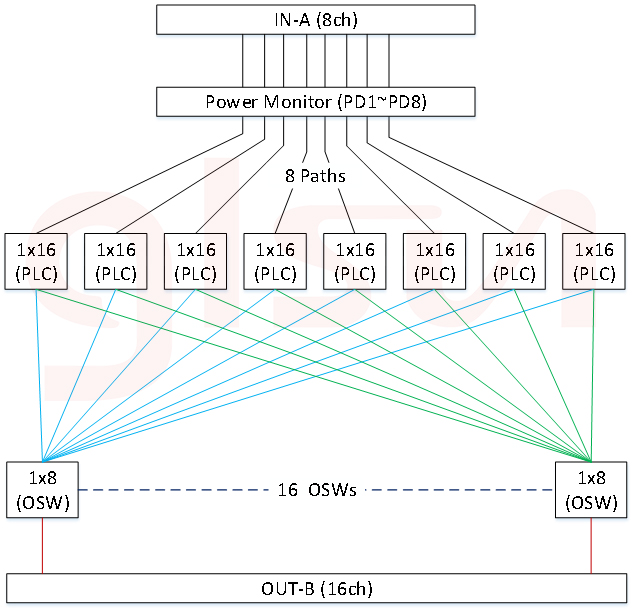

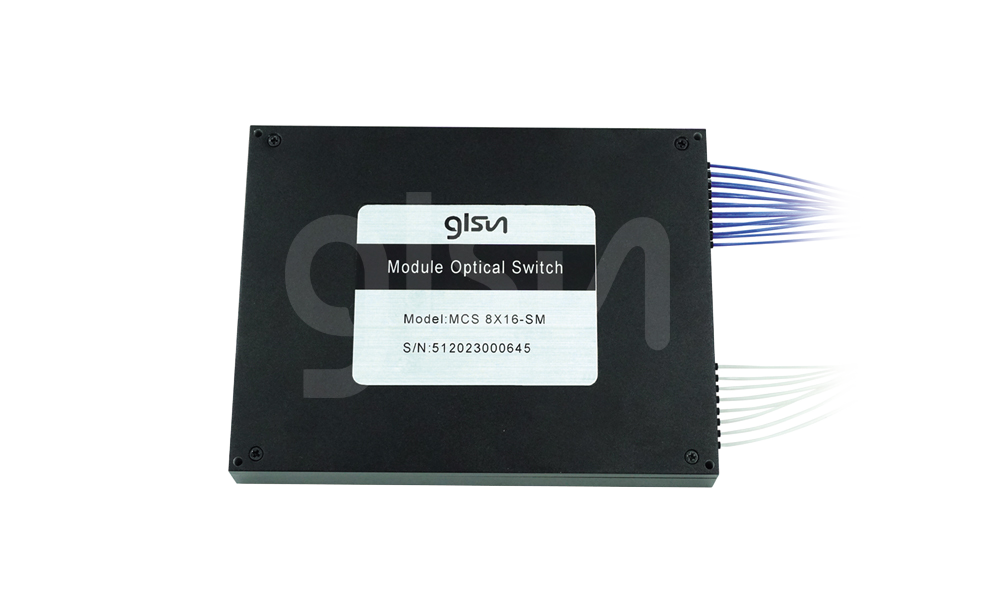

Multicast Switch (MCS) series are designed for next generation of CDC-ROADM system based on PLC splitter and MEMS optical switch technology. This 8x16 multicast optical switch is an integrated module containing 8x16 type MCS and electronic control unit inside. The module could implement any optical input can be routed to any of the out ports function. It could be used at key locations in the CDC-ROADM optical network.
Features
· ADD & DROP in one module
· Hitless switching
· Low insert loss
· Low power dissipation
Applications
· DWDM Networks
· ROADM Systems
|
Parameters |
Units |
SUN-MCS-8X16 |
||
|
Min. |
Typ. |
Max. |
||
|
Downlink Port Number |
M |
8 |
||
|
Uplink Port Number |
N |
16 |
||
|
Operation Wavelength Range |
nm |
1527 |
|
1568 |
|
Test Wavelength |
nm |
|
1550 |
|
|
Insertion Loss 1,2 |
dB |
|
|
16 |
|
Insertion Loss Uniformity |
dB |
|
|
1.5 |
|
Polarization Dependent Loss |
dB |
|
|
0.5 |
|
Wavelength Dependent Loss |
dB |
|
|
0.5 |
|
Polarization Mode Dispersion |
ps |
|
|
0.5 |
|
Block State Insertion Loss |
dB |
40 |
|
|
|
Return Loss |
dB |
45 |
|
|
|
Port Isolation |
dB |
40 |
|
|
|
Port Switch Time |
ms |
|
|
25 |
|
Repeatability |
dB |
|
±0.05 |
|
|
Maximum Optical Input Power |
dBm |
|
|
23 |
|
Durability |
Cycles |
109 |
|
|
|
Power Consumption |
W |
|
|
10 |
|
Operating Temperature |
℃ |
-5~+60 |
||
|
Storage Temperature |
℃ |
-40~+85 |
||
|
Dimension |
mm |
220(L) x120(W) x15(H) ±0.2 |
||
|
Note： 1 Within operating temperature and SOP. 2 Excluding connectors. |
||||
SUN-MCS-8x16-A-B-C-D-E
|
A |
B |
C |
D |
E |
|
Fiber Type |
Test Wavelength |
Tube Type |
Fiber Length (Include connector) |
Connector |
|
SM:SM,9/125 X: Others |
1550:1550nm X:Others |
90:900um X: Others |
05: 0.5m±5cm 10: 1.0m±5cm 15: 1.5m±5cm X: Others |
OO: None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC STP: ST/PC LP: LC/PC LA: LC/APC X: Others |
