Wavelength Range：1260 ~ 1620nm
Storage Temperature：-40 ~ +85℃
Relative Humidity：5 ~ 95%
4CH~8CH Dimension：44×25×6mm or 55×35×8mm
10CH~18CH Dimension：55×35×8mm or 55×45×8mm

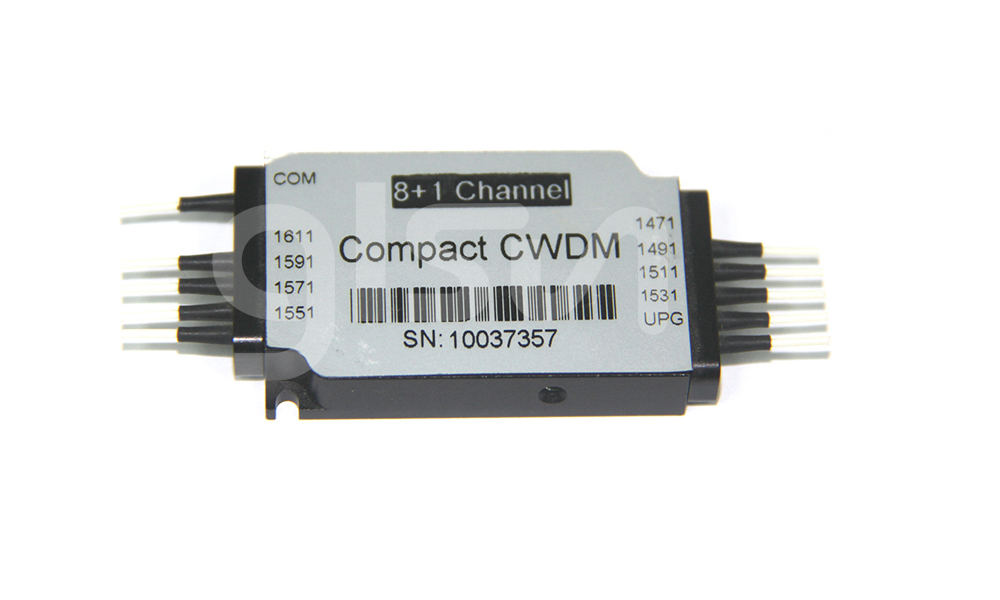

GLSUN CCWDM module (Compact Coarse Wavelength Division Multiplexer) is a multi-channel CWDM module with compact size. This compact cwdm module is a kind of wavelength division multiplexing technology based on TFF (Thin Film Filter). It is designed for cost-effective CWDM network application.
Features
·Low insertion Loss
·Compact size
·High channel isolation
·Excellent environmental reliability
Applications
·WDM system
·CATV
·MAN(Metropolitan Area Network)
|
Parameters |
Unit |
SUN-CCWDM Module |
|||||||||||
|
Wavelength Range |
nm |
1260 ~ 1620 |
|||||||||||
|
Channel Center Wavelength |
nm |
|
|
1270 / 1290 / … / 1610 |
or |
1271 / 1291 / … / 1611 |
|
|
|||||
|
Channel Spacing |
nm |
20 |
|||||||||||
|
Channel Passband |
nm |
λc ± 6.5 |
|||||||||||
|
Channel No. |
λ |
4 |
4+1 |
8 |
8+1 |
8+1A |
10 |
12 |
14 |
16 |
18 |
||
|
UPG Port Wavelength Range |
nm |
- |
TBD |
- |
1260~1360 |
1260~1457 |
- |
- |
- |
- |
- |
||
|
Max Insertion Loss |
dB |
1.0 |
1.2 |
1.5 |
1.7 |
1.8 |
2.0 |
2.4 |
2.5 |
2.7 |
3.0 |
||
|
Passband Ripple |
dB |
≤0.5 |
|||||||||||
|
Adjacent Channel Isolation |
dB |
≥ 30 |
|||||||||||
|
Non-adjacent Channel Isolation |
dB |
≥ 40 |
|||||||||||
|
UPG Isolation |
dB |
≥ 15 |
|||||||||||
|
PDL |
dB |
≤ 0.2 |
|||||||||||
|
PMD |
ps |
≤ 0.2 |
|||||||||||
|
Directivity |
dB |
≥ 50 |
|||||||||||
|
Return loss |
dB |
≥ 45 |
|||||||||||
|
Optical Power |
mW |
≤ 300 |
|||||||||||
|
Operating Temperature |
℃ |
-5 ~ +65 |
|||||||||||
|
Storage Temperature |
℃ |
-40 ~ +85 |
|||||||||||
|
Relative Humidity |
% |
5 ~ 95 |
|||||||||||
|
Dimension |
4CH~8CH: 44×25×6mm or 55×35×8mm 10CH~18CH: 55×35×8mm or 55×45×8mm |
||||||||||||
| Note: 1. Customization is available. 2. Specified without connector, and add an additional 0.2dB loss per connector. |
|||||||||||||
SUN-CCWDM-A-B-C-D-E-F
|
A |
B |
C |
D |
E |
F |
|
Channel No. |
Tube Type |
Fiber Length (Include connector) |
Connector |
Dimension(mm) |
Wavelength |
|
4: 4 channels 4+1: 4 channels +UPG port 8: 8 channels 8+1: 8 channels +UPG port 8+1A: 8 channels+ UPG port n: n channels |
25:250um 90:900um X: Others |
05: 0.5m±0.05m 10: 1.0m±0.05m 15: 1.5m±0.05m X: Others |
OO:None FP: FC/PC FA:FC/APC SP: SC/PC SA:SC/APC STP:ST/PC LP: LC/PC LA: LC/APC X: Others |
44×25×6 55×35×8 55×35×8A 55×45×8 |
λ1 / λ2 / λ3 / … |
