Wavelength Range：850±40 / 1300±40nm; 1260 ~ 1650nm
Test Wavelength：850 / 1300nm; 1310 / 1550nm
Storage Temperature：-20 ～ + 70℃
Relative Humidity：5% ~ 95%
Dimension：160×200×21mm（WxDxH）

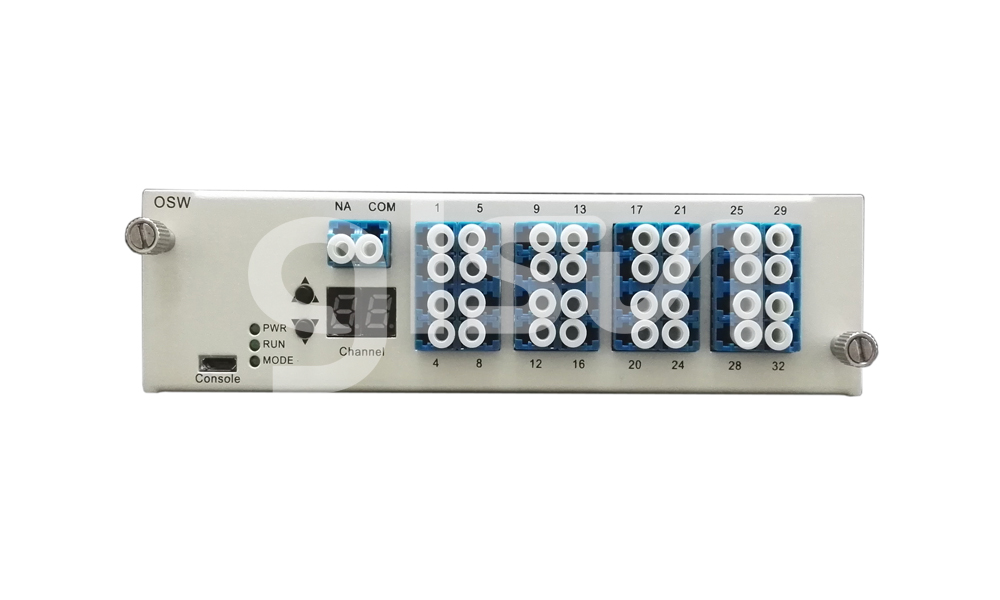

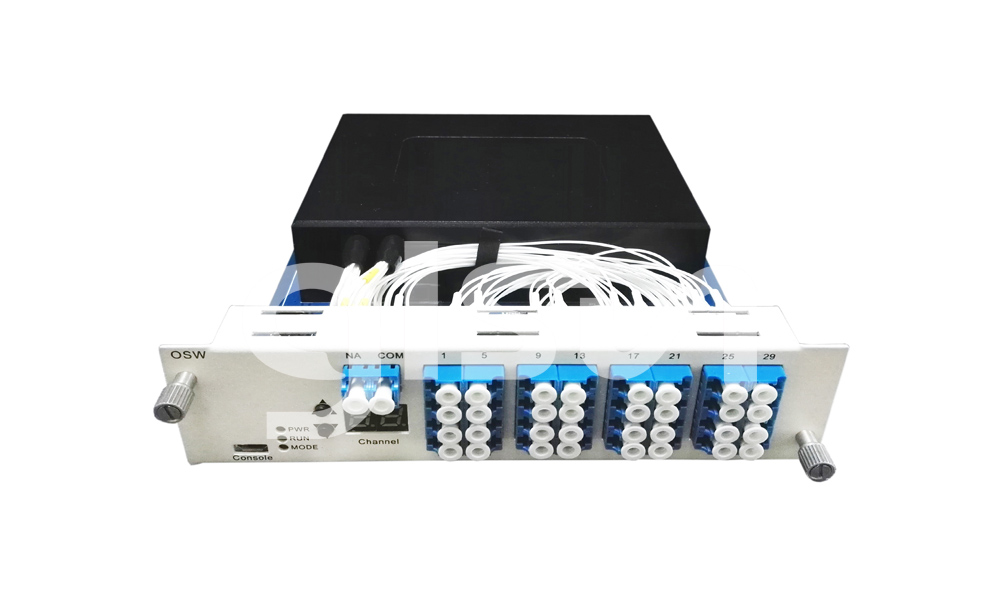

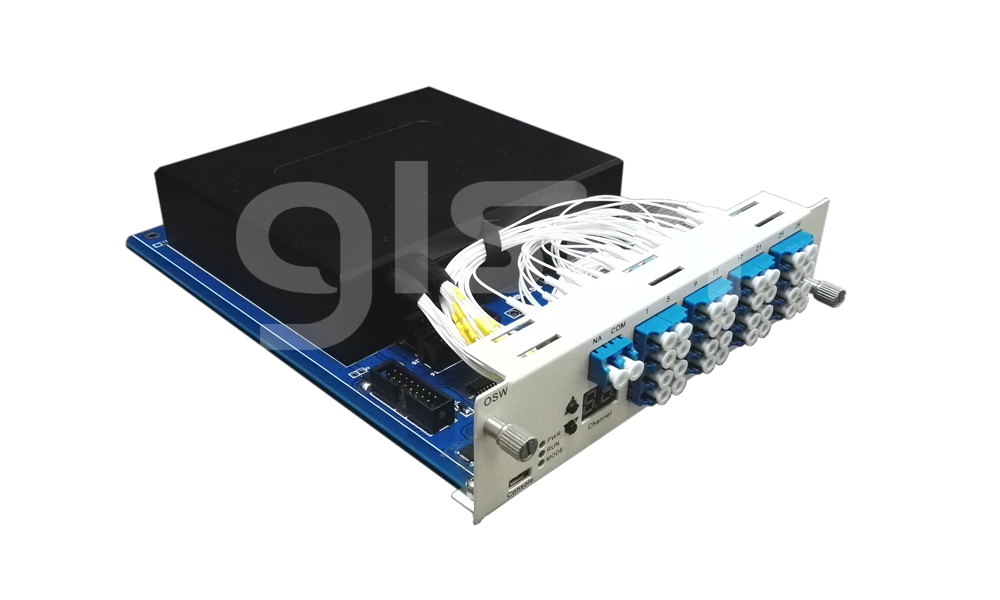

OTS3000-OSW 1xN Optical Switch
GLSUN OTS3000-OSW is a kind of function card in optical communication integrated platform. 1xN Optical Switch is a kind of functional device, with the ability of controlling and switching optical route. It can be manually selected from front panel or Ethernet port and auto-scanned on certain frequency. In optical fiber transmission system, it is used for multi-channel fiber monitoring, multi light source/ detector selection, and optical fiber path protection etc. Besides, it is also used in optical fiber test system for optical fiber and its component test, outdoor cable test and multi-spot optical sensors monitoring system.
Features

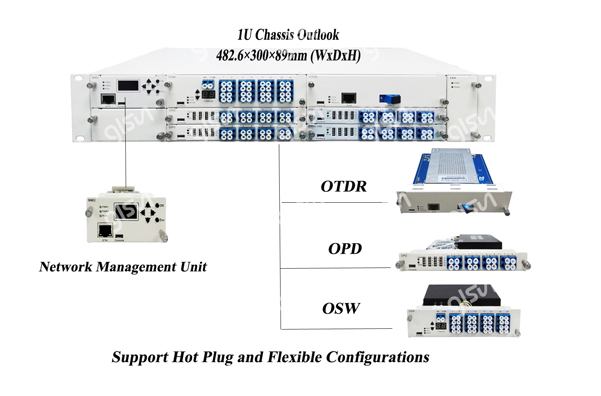

·Modularized design, Compact size, Support hot Plug.
·Easy operation by LCD panel and Nixie tube display
·Low Insertion Loss, Fast switching, 10 million durability maximum.
·High stability, High reliability.
Applications
·FITL, Automatic Measurement
·Optical Network Remote Monitoring
·Fiber Cable Monitoring and Maintaining system
|
Parameters |
Unit |
SUN-OTS3000-OSW |
|
|
Dimension |
mm |
160×200×21（WxDxH） |
|
|
Maximal Power Consumption |
W |
2 |
|
|
Wavelength Range |
nm |
850±40 / 1300±40 |
1260 ~ 1650 |
|
Test Wavelength |
nm |
850 / 1300 |
1310 / 1550 |
|
Insertion Loss |
dB |
1<N≤32 |
32<N≤64 |
|
|
|
Typ:1.0 Max:1.2 |
Typ:1.2 Max:1.7 |
|
Return Loss |
dB |
MM≥30 SM≥45 |
|
|
Crosstalk |
dB |
≥55 |
|
|
PDL |
dB |
≤0.05 |
|
|
WDL |
dB |
≤0.25 |
|
|
Repeatability |
dB |
≤±0.05 |
|
|
Durability |
times |
107 |
|
|
Optical Power |
mW |
≤500 |
|
|
Switching Time |
ms |
≤10（sequence switch time of adjacent channel） |
|
|
Operating Temperature |
℃ |
-5 ～ + 55 |
|
|
Storage Temperature |
℃ |
-20 ～ + 70 |
|
|
Relative Humidity |
|
5% ~ 95% (non-condensing) |
|
|
A |
B |
C |
D |
|
Channel |
Fiber Type |
Operating Wavelength |
Connector Type |
|
1x16：16 Channels 1x32：32 Channels 1x72：72 Channels X: Others |
SM: SM 9/125; M5: MM 50/125; M6: MM 62.5/125 X: Others |
850：850nm 1310: 1310nm 1550: 1550nm 1310/1550:1310/1550nm X:Others |
LP: LC/PC X: Others |
