OTS3000-OTDR Optical Time Domain Reflectometer for Fiber Monitoring and Testing

Product Details

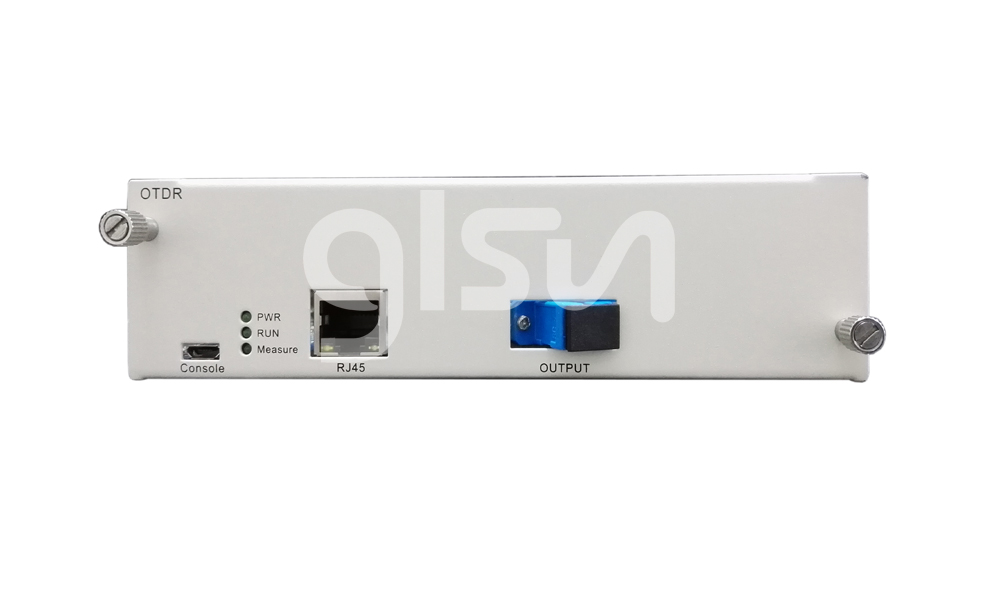

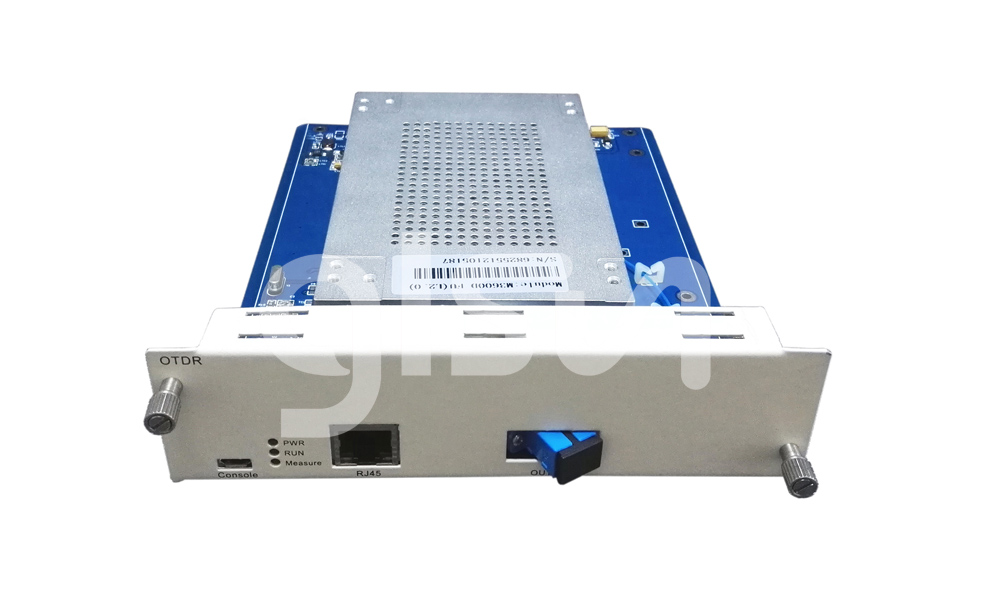

OTS3000-OTDR Optical Time Domain Reflectometer

GLSUN OTS3000-OTDR is a kind of functional card in optical communication integrated platform. It provides external Ethernet port for the user to integrate the secondary development conveniently into the original monitoring system. OTDR can work with other function cards (such as OSW, LSU and OPD) together to construct the complete cable monitoring system.

Features

·Modularized design, Compact size, Support hot Plug.
·Provide external Ethernet interface to facilitate the secondary development.
·Comparative analysis of the test curve, historical curve, automatic analysis of OTDR curve.

Applications

·Fiber cable monitoring
·PON network monitoring and management
·Optical network real-time monitoring and management

Specifications

Parameters	Unit	SUN-OTS3000-OTDR
Dimension	mm	160×200×43（WxDxH）
Maximal Power Consumption	W	5
Dynamic range SNR=1	dB	36	40	42
Operating wavelength	nm	1550±20 / 1625±20 / 1650±20
Fiber type	um	SM 9/125
Connector type		LC/PC, LC/APC, FC/PC, FC/APC or others
Pulse width		5ns,10ns,20ns,40ns,80ns,160ns,320ns,640ns, 1.28μs,2.56μs,5.12μs,10.24μs,20.48us,Auto
Event dead zone	m	≤2
Attenuation dead zone	m	≤12
Minimum sampling spacing	m	0.125
Maximum sample size	k	32
Ranging accuracy		±（1m+5x10^-5xDistance + Sample spacing）
Measuring range	km	1km, 5km, 10km, 30km, 60km, 100km, 180km
Monitoring interface		Ethernet
Operating temperature	℃	-5 ~ +55
Storage temperature	℃	-20 ~ +70
Relative Humidity		5% ~ 95% (non-condensing)
