Switch Type：Mechanical
Package Type：Device
Fiber Configuration：2x2
Wavelength Range：850±40 / 1300±40; 1260 ~ 1650nm
Dimension：(L)27.0×(W)12.6×(H)8.2 ±0.2mm

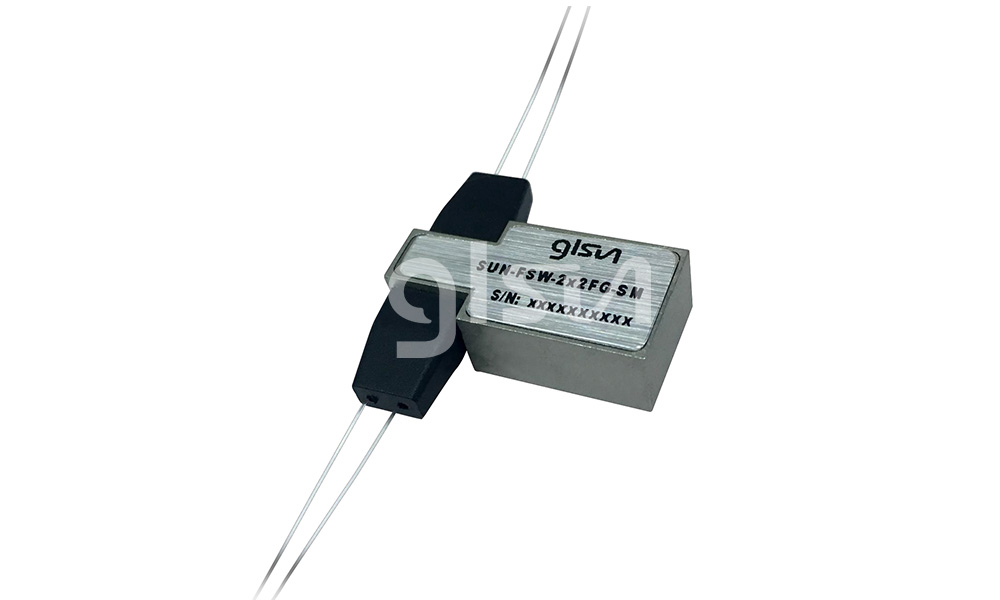

SUN-FSW-2x2FG Optical Switch, which is famous for its high performance, low insertion loss and compact dimension: (L)27.0×(W)12.6×(H)8.2 ±0.2mm. Fiber optic switch is an ideal component for OADM,OXC,system monitoring and protection. With compact package, 2x2F fiber optic switch can be easy to integrate into a high density optical networking communication system.
Features
·Low Insertion Loss
·Wide Wavelength Range
·Low Crosstalk
·High Stability, High Reliability
·Epoxy-free on Optical Path
·Latching and Non-latching
Applications
·R&D in Laboratory
·System Monitoring
·OADM
·MAN(Metropolitan Area Network)
·Network Security and Monitoring
|
Parameters |
Unit |
SUN-FSW-2×2FG |
|
|
Wavelength Range |
nm |
850±40 / 1300±40 |
1260 ~ 1650 |
|
Test Wavelength |
nm |
850 / 1300 |
1310 / 1550 |
|
Insertion Loss 1, 2 |
dB |
≤ 1.0 |
|
|
Return Loss 1, 2 |
dB |
≥ 30 |
≥ 50 |
|
Crosstalk 1 |
dB |
≥ 35 |
≥ 55 |
|
PDL |
dB |
-- |
≤0.05 |
|
WDL |
dB |
≤ 0.25 |
|
|
Repeatability |
dB |
≤ ±0.02 |
|
|
Operating Voltage |
V |
3.0 or 5.0 |
|
|
Durability |
Cycles |
≥ 10 Million |
|
|
Switching Time |
ms |
≤ 5 |
|
|
Optical Power 3 |
mW |
≤ 500 |
|
|
Operating Temperature 4 |
℃ |
-5~ +70 |
|
|
Storage Temperature |
℃ |
-40 ~ +85 |
|
|
Relative Humidity |
% |
5 ~ 95 |
|
|
Weight |
g |
14 |
|
|
Dimension |
mm |
(L)27.0×(W)12.6×(H)8.2 ±0.2 |
|
|
Note: 1 With room temperature and SOP. 2 Excluding connectors, add 0.2dB one pair connectors. 3 The optical power can be customized to ≤ 10W. 4 The Operating temperature range can be customized from -40 to 85 ℃. |
|||
SUN-FSW-2×2FG-A-B-C-D-E-F-G
|
A |
B |
C |
D |
E |
F |
G |
|
Fiber Type |
Operating Voltage |
Switch Type |
Test Wavelength |
Tube Type |
Fiber Length (Include connector) |
Connector |
|
SM： SM,9/125 M5： MM,50/125 M6： MM,62.5/125 X： Others
|
3： 3V 5： 5V
|
L： Latching N： Non-latching
|
850： 850nm 1310： 1310nm 8513： 850/1310nm 1550： 1550nm 1315： 1310/1550nm X： Others
|
25： 250um 90： 900um X： Others
|
05： 0.5m±5cm 10： 1.0m±5cm 15： 1.5m±5cm X： Others
|
OO：None FP：FC/PC FA：FC/APC SP：SC/PC SA：SC/APC STP：ST/PC LP：LC/PC LA：LC/APC DLP：Duplex LC/PC X：Others |
