Switch Type：Mechanical
Package Type：Device
Fiber Configuration：M1x1S, M1x2S, M2x2BS
Wavelength Range：1260 ~ 1650nm
Dimension：(L )20×(W)9.5×(H)8.5 ±0.2

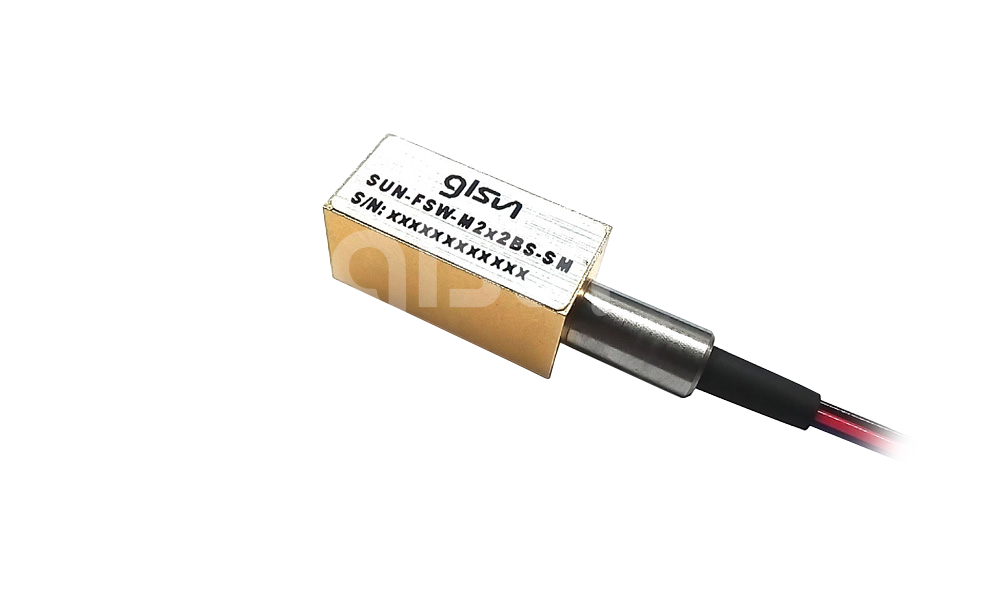

GLsun Mini Single-end Optical Switch, which is famous for its high performance, low insertion loss and compact dimension: (L)21.0×(W)9.0×(H)12.0 ±0.2mm. Mini optical switch is an ideal component for OADM,OXC,system monitoring and protection. With compact package, it can be easy to integrate into a high density optical communication system.
Features
·Low Insertion Loss
·Wide Wavelength Range
·Low Crosstalk
·High Stability, High Reliability
·Epoxy-free on Optical Path
·Latching and Non-latching
Applications
·Low Insertion Loss
·Wide Wavelength Range
·Low Crosstalk
·High Stability, High Reliability
·Epoxy-free on Optical Path
·Latching and Non-latching
|
Parameters |
Unit |
SUN-FSW |
|
Wavelength Range |
nm |
1260 ~ 1650 |
|
Test Wavelength |
nm |
1310 / 1550 |
|
Insertion Loss 1, 2 |
dB |
M1×1S ≤ 0.5 |
|
M1×2S / M2×2BS ≤ 0.8 |
||
|
Return Loss 1, 2 |
dB |
SM ≥ 50 |
|
Crosstalk 1 |
dB |
SM ≥ 55 |
|
PDL |
dB |
≤ 0.05 |
|
WDL |
dB |
≤ 0.25 |
|
Repeatability |
dB |
≤ ±0.02 |
|
Operating Voltage |
V |
3.0 or 5.0 |
|
Durability |
Cycles |
≥ 10 Million |
|
Voltage Pluse Width(Latching) |
ms |
≥ 20 |
|
Switching Time |
ms |
≤ 8 |
|
Optical Power |
mW |
≤ 500 |
|
Operating Temperature |
℃ |
-5 ~ +70 |
|
Storage Temperature |
℃ |
-40 ~ +85 |
|
Relative Humidity |
% |
5 ~ 95 |
|
Weight |
g |
13 |
|
Dimension |
mm |
(L )20×(W)9.5×(H)8.5 ±0.2 |
|
Note: 1 Test at room temperature. 2 Excluding connectors. |
||
SUN-FSW-A-B-C-D-E-F-G-H
|
A |
B |
C |
D |
E |
F |
G |
H |
|
Switch Type |
Fiber Type |
Operating Voltage |
Switch Type |
Test Wavelength |
Tube Type |
Fiber Length (Include connector) |
Connector |
|
M1×1S M1×2S M2×2BS |
SM：SM,9/125 X：Others |
3：3V 5：5V |
L：Latching N：Non-latching |
1310：1310nm 1550：1550nm 1310/1550：1310/1550nm X：Others |
25：250um 90：900um X：Others |
05：0.5m±5cm 10：1.0m±5cm 15：1.5m±5cm X：Others |
OO：None FP：FC/PC FA：FC/APC SP：SC/PC SA：SC/APC LP：LC/PC LA：LC/APC X：Others |
