1x2 Mechanical Optical Switch, Fiber Optic Switches

Product Details

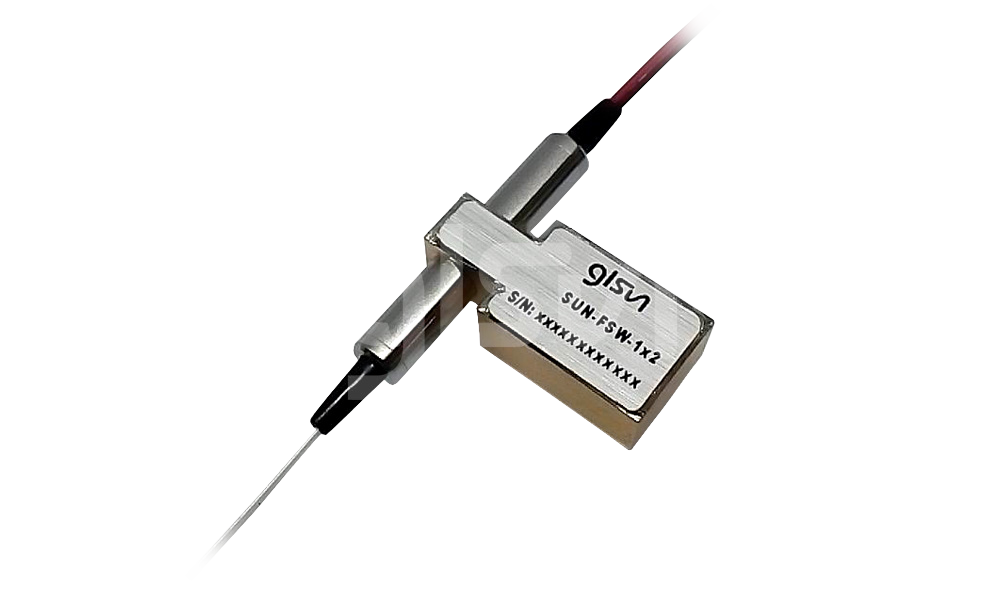

SUN-FSW-C1x2G Optical Switch, which is famous for its high performance, low insertion loss and compact dimension: (L)27.0×(W)12.6×(H)8.2mm. 1x2 fiber optic switch is an ideal component for OADM,OXC,system monitoring and protection. With compact package, 1x2 mechanical optical switch can be easy to integrate into a high density optical communication system.

Features

·Low Insertion Loss
·Wide Wavelength Range
·Low Crosstalk
·High Stability, High Reliability
·Epoxy-free on Optical Path
·Latching and Non-latching

Applications

·R&D in Laboratory

·System Monitoring

·OADM

·MAN(Metropolitan Area Network)

·Network Security and Monitoring

Specifications

Parameters	Unit	SUN-FSW-C1×2G
Wavelength Range	nm	850±40 / 1300±40	1260 ~ 1650
Test Wavelength	nm	850 / 1300	1310 / 1550
Insertion Loss 1, 2	dB	≤ 0.8
Return Loss 1, 2	dB	≥ 30	≥ 50
Crosstalk 1	dB	≥ 35	≥ 55
PDL	dB	--	≤ 0.05
WDL 3	dB	≤ 0.25
TDL 4	dB	≤ 0.3
Repeatability	dB	≤ ±0.02
Operating Voltage	V	3.0 or 5.0
Durability	Cycles	≥ 10 Million
Switching Time	ms	≤ 8
Optical Power 5	mW	≤ 500
Operating Temperature 6	℃	-5~ +70
Storage Temperature	℃	-40 ~ +85
Relative Humidity	%	5 ~ 95
Weight	g	13
Dimension	mm	(L)27.0×(W)12.6×(H)8.2 ±0.2
Note: 1. Within room temperature and SOP. 2. Excluding connectors. 3. The center wavelength is the reference for the WDL value. 4. The room temperature is the reference for the TDL value. 5. The optical power can be customized to ≤ 10W. 6. The Operating temperature range can be customized from -40 to 85 ℃.
