Channel Spacing：100G / 200G
Channel Number：8CH
Center Wavelength：C-band, ITU Grid

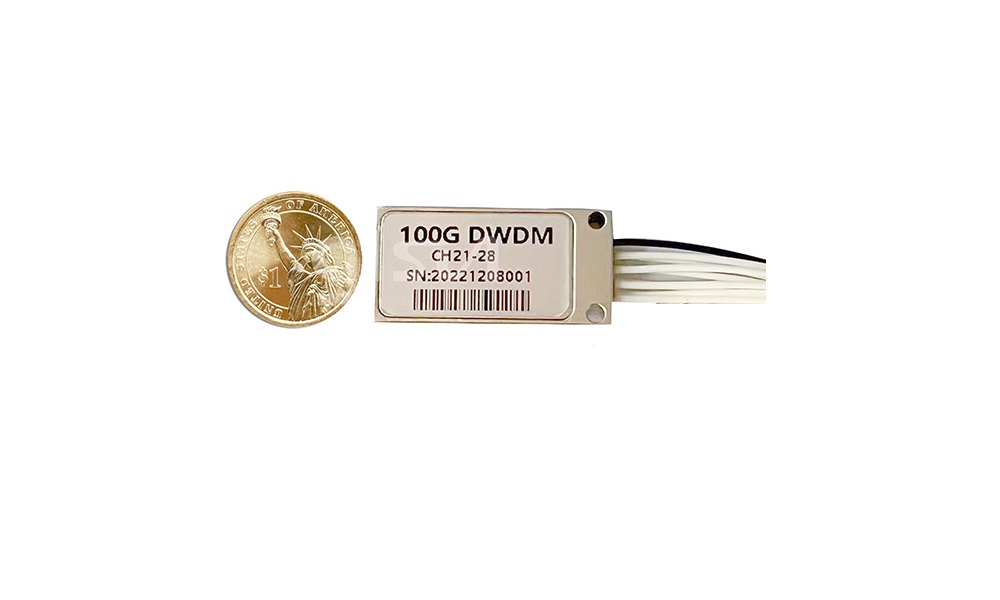

GLSUN's ultra compact 100GHz/200GHz dense wavelength division multiplexers(DWDM) are integrated micro-optic modules using multi-layers structure optical platform based on thin film filter (TTF) technology and free-space technology with ultra-low insertion that could be used for NG-PON2 application.
Features
·Low insertion Loss
·High Quality and Reliability
Applications
·High Speed Networks
·Coherent Optics
·Fiber Sensors
·Research
|
Parameters |
Unit |
Values |
|
|
Channel Number |
|
8 |
|
|
Center Wavelength |
nm |
C-band, ITU Grid |
|
|
Filter Type |
|
100GHz |
|
|
Channel Passband（0.5dB） |
nm |
>0.32 |
|
|
Insertion Loss |
dB |
≤2.0 |
|
|
Isolation |
Adjacent |
dB |
≥30 |
|
Non-adjacent |
dB |
≥40 |
|
|
Polarization Dependent Loss |
dB |
≤0.3 |
|
|
Min Return Loss |
dB |
≥50 |
|
|
Optical Power (CW) |
mW |
≤500 |
|
|
Fiber Length |
M |
≥1.0 |
|
|
Fiber Type |
|
G657 A2 fiber, bare fiber or 900um jacket |
|
|
Connector |
|
None |
|
|
Operating Temperature |
℃ |
-5 to +55 |
|
|
Storage Temperature |
℃ |
-40 to +85 |
|
|
Dimension |
mm |
29x14.5x6.5 |
|
SUN-UCDWDM-A-B-C-D-E
|
A |
B |
C |
D |
E |
|
Channel Spacing |
ITU Grid |
Fiber Jacket |
Fiber Length |
Connector Type |
|
100: 100 GHz 200: 200 GHz |
21: C21-28 23: C23-30 X: Others |
25: 250um Bare Fiber 90: 900um Loose Tube X: Others |
07: 0.7m 10: 1.0m X: Others |
OO: None FU: FC/UPC FA: FC/APC SU: SC/UPC SA: SC/APC X: Others |
