Switch Type：Nanosecond
Package Type：Device
Fiber Configuration：1x2
Wavelength Range：1260~1360nm; 1500~1600nm
Dimension：(L)28.0×(W)7.5×(H)7.5 ±0.2mm

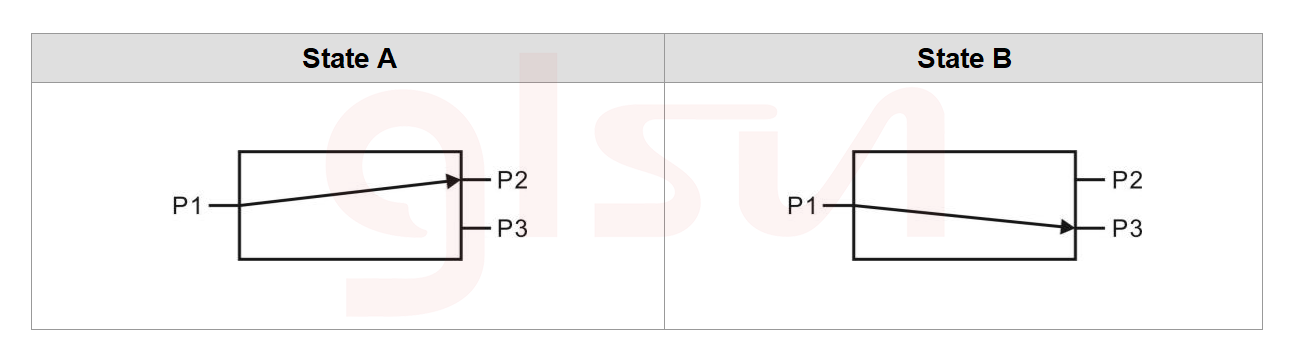

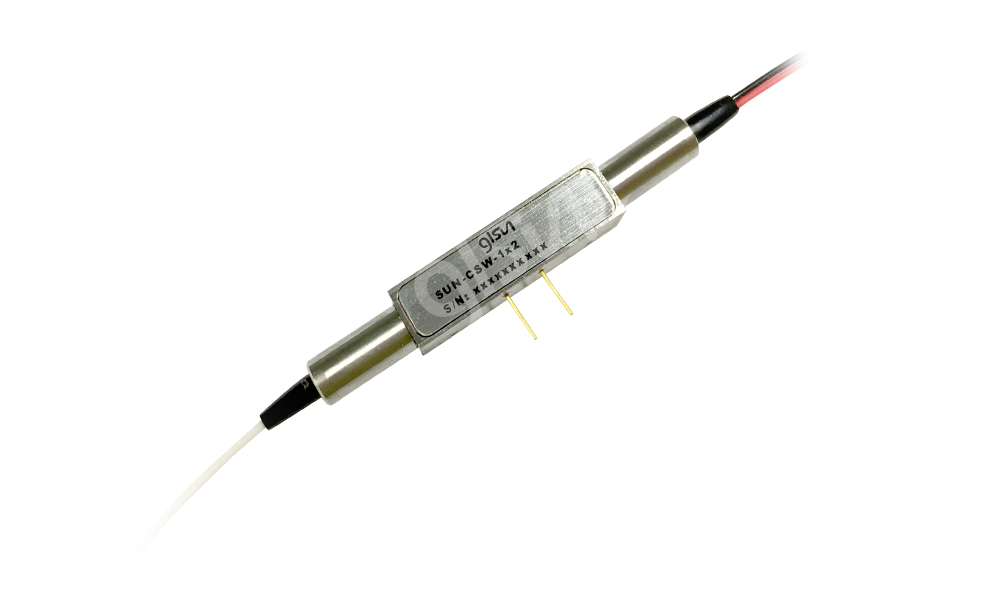

The N1x2 nanosecond optical switch is connected to the optical path by connecting or blocking the optical signal. The switch has non-mechanical configurations and activated via an electrical control signal. Products are widely used in aerospace equipment and sensing system.
Features
·Solid-state high speed
·High Stability, High Reliability
·Epoxy-free on Optical Path
Applications
·Aerospace equipment
·Sensing system
·System monitoring
Specifications
|
Parameters |
Unit |
SUN-N1x2 |
|
|
Wavelength Range |
nm |
1260 ~ 1360 |
1500 ~ 1600 |
|
Test Wavelength |
nm |
1310 |
1550 |
|
Insertion Loss 1, 2 |
dB |
≤ 1.0 |
|
|
PDL |
dB |
≤ 0.30 |
|
|
Return Loss |
dB |
≥ 50 |
|
|
Crosstalk 1 |
dB |
≥ 18 |
|
|
Repeatability |
dB |
≤ ±0.01 |
|
|
Switching Time |
ns |
≤ 300 |
|
|
Operating Voltage 3 |
V |
190 ~ 230 |
|
|
Durability |
Cycles |
≥10 Billions |
|
|
Switch Type |
NA |
Non-Latching |
|
|
Maximum Optical Power |
mW |
≤ 500 |
|
|
Operationg Temperature 4 |
℃ |
-5 ~ +70 |
|
|
Storage Temperature |
℃ |
-40 ~ +85 |
|
|
Dimension |
mm |
28.0×7.5×7.5 ±0.2 |
|
|
Note: 1 Test at room temperature and SOP. 2 Excluding connectors, 0.2dB for one pair connectors. 3 Test at room temperature, each product with different operating voltage. 4 Different temperature with different operating voltage. |
|||
SUN-N1x2-A-B-C-D-E
|
A |
B |
C |
D |
E |
|
Fiber Type |
Wavelength |
Tube Type |
Fiber Length |
Connector |
|
SM： SM，9/125 X： Others |
1310： 1310nm 1550： 1550nm X： Others |
250： 250um 900： 900um X： Others |
05： 0.5m±5cm 10： 1.0m±5cm X： Others |
OO：None FC：FC/PC FA：FC/APC SC：SC/PC SA：SC/APC LC：LC/PC X：Others |
