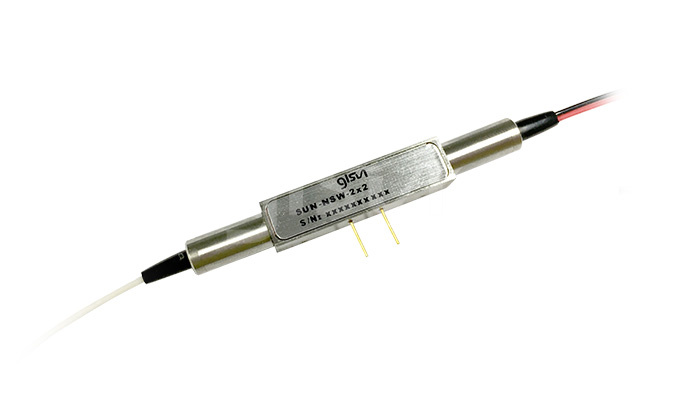

N2x2 Nanosecond Optical Switch
  • N2x2 Nanosecond Optical Switch
  • N2x2 Nanosecond Optical Switch

N2x2 Nanosecond Optical Switch

Switch Type:Nanosecond

Package Type:Device

Fiber Configuration:2x2

Wavelength Range:1260~1360nm; 1500~1600nm

Dimension:(L)31.0×(W)7.5×(H)7.5 ±0.2mm

Product Details

Description

GLSUN N2x2 Nanosecond Optical Switch is a high-performance fiber optic switch utilizing advanced nanosecond-level switching technology to achieve millisecond-level switching times. The switch has non-mechanical configurations and activated via an electrical control signal. Ideal for fiber optic communication, fiber optic sensing, and fiber optic testing, it offers low insertion loss and excellent stability.



Features
·Solid-state high speed
·High Stability, High Reliability
·Epoxy-free on Optical Path



Applications
·Aerospace equipment
·Sensing system
·System monitoring



Specifications

Parameters

Unit

SUN-N2x2

Wavelength Range

nm

1260 ~ 1360

1500 ~ 1600

Test Wavelength

nm

1310

1550

Insertion Loss 1, 2

dB

≤ 1.5

PDL

dB

≤ 0.30

Return Loss

dB

≥ 50

Crosstalk 1

dB

≥ 18

Repeatability

dB

≤ ±0.01

Switching Time

ns

≤ 300

Operating Voltage 3

V

190 ~ 230

Durability

Cycles

≥10 Billions

Switch Type

NA

Non-Latching

Maximum Optical Power

mW

≤ 500

Operationg Temperature 4

-5 ~ +70

Storage Temperature

-40 ~ +85

Dimension

mm

(L)31.0×(W)7.5×(H)7.5 ±0.2

Note:

 1  Test at room temperature and SOP.

 2  Excluding connectors, 0.2dB for one pair connectors.

 3  Test at room temperature, each product with different operating voltage.

 4  Different temperature with different operating voltage.

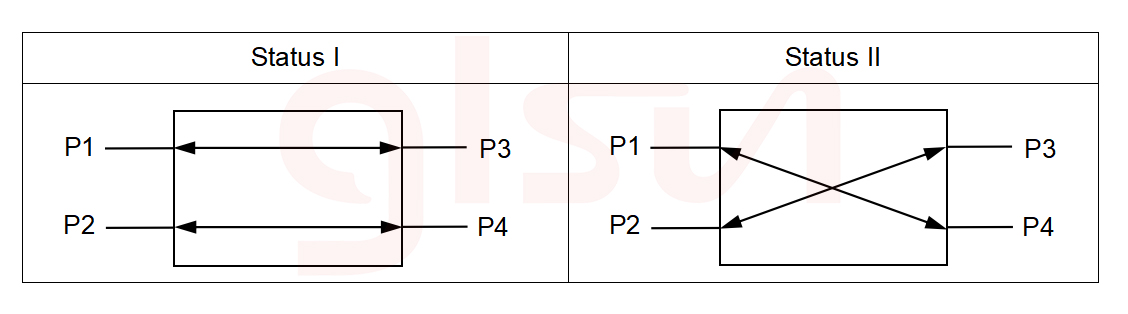

Optical Route

Ordering Information

SUN-N2x2-A-B-C-D-E

A

B

C

D

E

Fiber Type

Wavelength

Tube Type

Fiber Length

Connector

SM:

SM,9/125

X:

Others

1310:

1310nm

1550:

1550nm

X:

Others

250:

250um

900:

900um

X:

Others

05:

0.5m±5cm

10:

1.0m±5cm

X:

Others

OO:None

FC:FC/PC

FA:FC/APC

SC:SC/PC

SA:SC/APC

LC:LC/PC

X:Others
