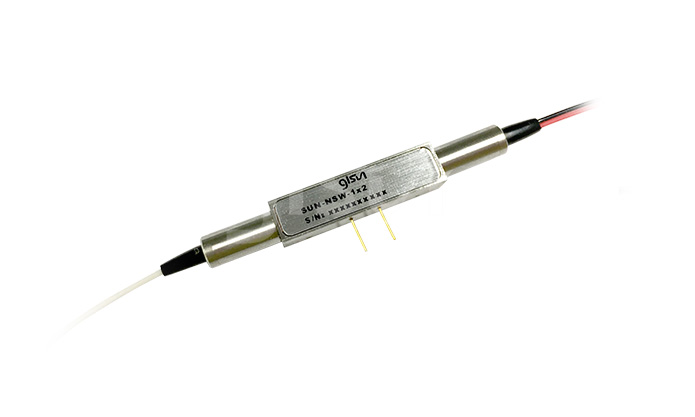

PM N1x2 Nanosecond Optical Switch
  • PM N1x2 Nanosecond Optical Switch
  • PM N1x2 Nanosecond Optical Switch

PM N1x2 Nanosecond Optical Switch

Switch Type:Nanosecond

Package Type:Device

Fiber Configuration:1x2

Wavelength Range:1260~1360nm; 1500~1600nm

Dimension:(L)28.0×(W)7.5×(H)7.5 ±0.2mm

Product Details

Description

GLSUN PM N1x2 nanosecond optical switch is connected to the optical path by connecting or blocking the optical signal. The switch has non-mechanical configurations and activated via an electrical control signal. Products are widely used in aerospace equipment and sensing system.



Features
·Solid-state high speed
·High Stability, High Reliability
·Epoxy-free on Optical Path



Applications
·Aerospace equipment
·Sensing system
·System monitoring



Specifications

Parameters

Unit

SUN-PM-N1x2

Wavelength Range

nm

1260 ~ 1360

1500 ~ 1600

Test Wavelength

nm

1310

1550

Insertion Loss 1, 2

dB

≤ 1.0

ER

dB

≥ 18

Return Loss

dB

≥ 50

Crosstalk 1

dB

≥ 18

Repeatability

dB

≤ ±0.01

Switching Time

ns

≤ 300

Operating Voltage 3

V

190 ~ 230

Durability

Cycles

≥10 Billions

Switch Type

NA

Non-Latching

Maximum Optical Power

mW

≤ 500

Operationg Temperature 4

-5 ~ +70

Storage Temperature

-40 ~ +85

Dimension

mm

28.0×7.5×7.5 ±0.2

Note:

 1  Test at room temperature and SOP.

 2  Excluding connectors, 0.2dB for one pair connectors.

 3  Test at room temperature, each product with different operating voltage.

 4  Different temperature with different operating voltage.



Optical Route

Ordering Information

SUN-PM-N1x2-A-B-C-D-E

A

B

C

D

E

Fiber Type

Wavelength

Tube Type

Fiber Length

Connector

PM13:

PM1310

PM15:

PM1550

X:

Others

1310:

1310nm

1550:

1550nm

X:

Others

250:

250um

900:

900um

X:

Others

05:

0.5m±5cm

10:

1.0m±5cm

X:

Others

OO:

None

FA:

FC/APC(Align to slow axis)
