Operating Wavelength：980 1480nm
Storage Temperature：-40 to 85℃
Dimension：Φ3.0×54mm, 90×20×10mm

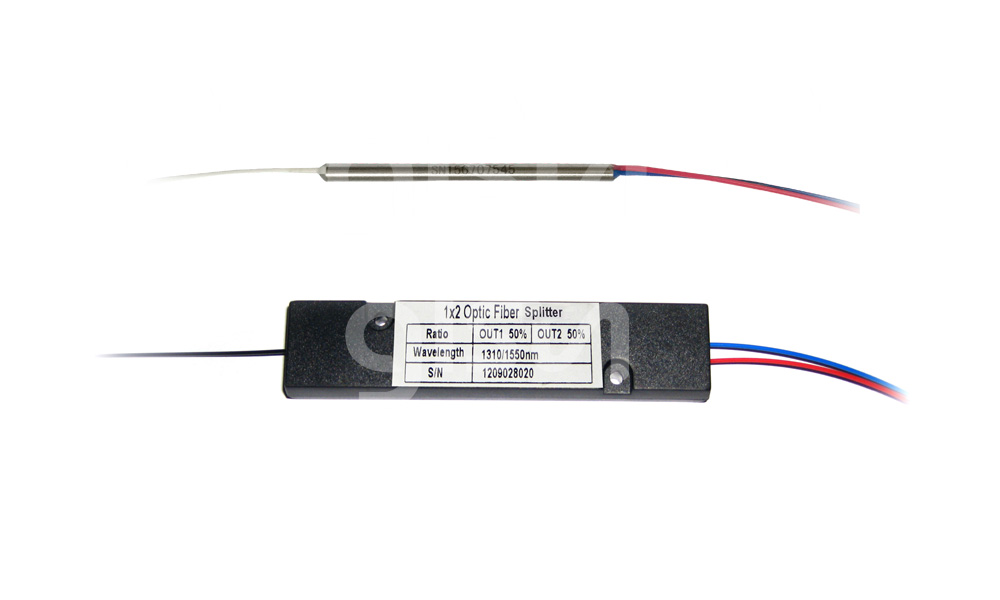

1×2(2x2) 980/1480 FBT Fiber Optic Splitter
A FBT (Fused Biconical Taper) fiber optic splitter is a passive optical device that divides an input optical signal into multiple output signals of equal or unequal power. It's a crucial component in fiber optic networks, enabling the efficient distribution of optical signals to multiple destinations.
Features
·Low insertion Loss
·Low polarization sensitivity
·Excellent environmental reliability
Applications
·Fiber optical communication system
·LAN
·CATV
·Optical fiber sensor
·Measure instruments
|
Operating Wavelength(nm) |
980 |
1480 |
|
Bandwidth(nm) |
±15 |
±40 |
|
Grade Coupling Ratio |
Max. Insertion Loss (dB) |
|
|
SUN-WBC-1×2(2×2)-S |
||
|
A |
||
|
50/50 |
3.6 |
|
|
40/60 |
4.6/2.8 |
|
|
30/70 |
6.0/2.1 |
|
|
20/80 |
7.9/1.35 |
|
|
PDL(dB) |
≤0.20 |
|
|
Directivity(dB) |
≥50 |
|
|
Operation temperature(℃) |
-40 to +85 |
|
|
Storage Temperature(℃) |
-40 to +85 |
|
|
Fiber type |
HI1060 flex or OFS980 |
SMF-28e |
|
Note: 1. Customization is available. 2.Specified without connector, and add an additional 0.2dB loss per connector. |
||
|
Configuration |
1×2(2×2) |
|
|
Dimensions(mm) |
250μm bare fiber |
Φ3.0×54 |
|
900μm loose tube |
Φ3.0×54 |
|
|
900μm/2mm/3mm loose tube |
90×20×10 |
|
SUN-WBC-1×2(2×2)-A-B-C-D-E-F-G-H-I
|
A |
B |
C |
D |
E |
F |
G |
H |
I |
|
Mode |
Grade |
Wavelength |
Package Spec |
Coupling Ratio |
Fiber Type |
Pigtail Type |
Fiber Length |
Connector |
|
S: Single Window |
A: Grade A |
98: 980nm 14: 1480nm X: Others
|
1:Φ3×54mm 5:90×20×10mm X: Others |
20/80 30/70 4060 50/50 …… |
9: 9/125 X: Others |
25:250um 90:900um 20:2.0mm 30: 3.0mm X: Others |
05:0.5m 10:1.0m 15:1.5m X:Others |
OO:None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC LP: LC/PC LA: LC/APC X: Others |
