Operating Wavelength：1260 ~ 1660nm
Storage Temperature：-40~85℃
Connector Type：Customized

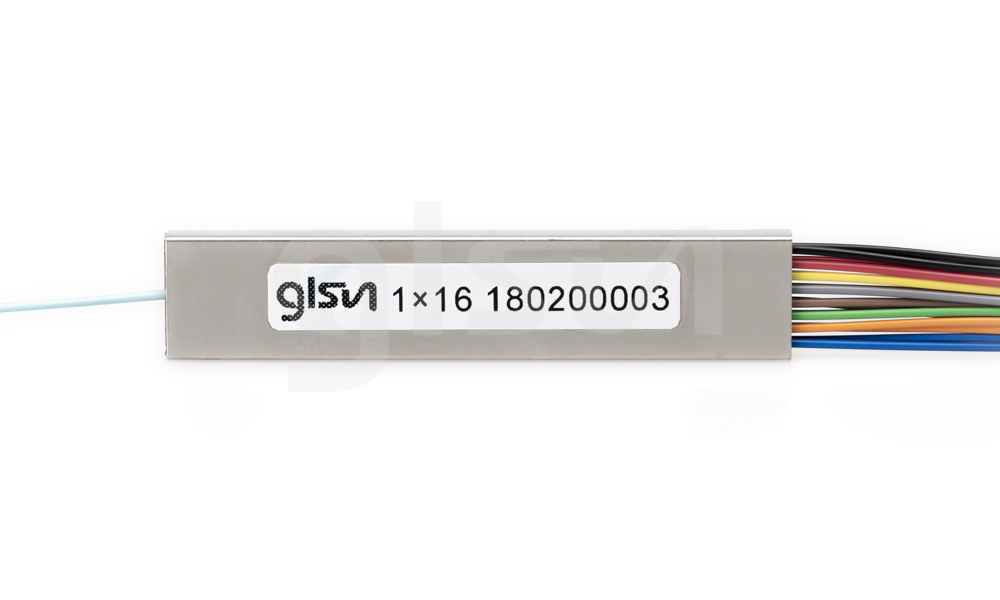

Fiber Optical PLC Splitter
A PLC (Planar Lightwave Circuit) optical splitter is a highly reliable and efficient optical device used to split a single optical signal into multiple output signals, or conversely, to combine multiple optical signals into one. It is an essential component in optical networks, particularly in Passive Optical Networks (PONs) and FTTH (Fiber to the Home) systems, where signals need to be distributed over long distances or to many endpoints. The PLC splitter is based on advanced waveguide technology and is known for its high performance, low loss, and excellent uniformity.
Features
·Low PDL and insertion Loss
·Excellent uniformity
·Compact design
·High reliability
Applications
·PON
·FTTX
·FTTH
·LAN
·CATV
|
Item |
unit |
Specifications |
||||||||||
|
1×2 |
1×4 |
1×8 |
1×16 |
1×32 |
1×64 |
|||||||
|
Insertion Loss without Connector @1310/1550nm |
dB |
≤ 3.7 |
≤ 7.0 |
≤ 10.4 |
≤ 13.5 |
≤ 16.9 |
≤ 20.0 |
|||||
|
Insertion Loss with Connector @1310/,550nm |
dB |
≤ 4.1 |
≤ 7.3 |
≤ 10.8 |
≤ 13.8 |
≤ 17.2 |
≤ 20.4 |
|||||
|
Uniformity @1310/1550nm |
dB |
≤ 0.6 |
≤ 0.6 |
≤ 1.0 |
≤ 1.3 |
≤ 2.4 |
≤ 2.6 |
|||||
|
PDL @1310/1550nm |
dB |
≤ 0.2 |
≤ 0.2 |
≤ 0.3 |
≤ 0.3 |
≤ 0.4 |
≤ 0.4 |
|||||
|
Return Loss @1310/1550nm |
Bare type |
dB |
≥ 55 |
≥ 55 |
≥ 55 |
≥ 55 |
≥ 55 |
≥ 55 |
||||
|
SC/APC connector |
dB |
≥ 60 |
≥ 60 |
≥ 60 |
≥ 60 |
≥ 60 |
≥ 60 |
|||||
|
SC/UPC connector |
dB |
≥ 55 |
≥ 55 |
≥ 55 |
≥ 55 |
≥ 55 |
≥ 55 |
|||||
|
Directivity @1310/1550nm |
dB |
≥ 55 |
≥ 55 |
≥ 55 |
≥ 55 |
≥ 55 |
≥ 55 |
|||||
|
Operating Wavelength |
nm |
1260 ~ 1650 |
||||||||||
|
Operating Temperature |
℃ |
-20 ~ +70 |
||||||||||
|
Operating Humidity |
% |
≤ 95% |
||||||||||
|
Fiber Length |
cm |
120±3 |
||||||||||
|
Connector type |
|
SC/APC or SC/UPC or None |
||||||||||
|
Fiber standard |
|
Single mode ITU-T G657A1 |
||||||||||
|
Casing |
Bare Type |
mm
|
1×2/1×4/1×8/1×16 |
40×4×4mm |
||||||||
|
1×32/1×64 |
50×7×4mm/60×12×4mm |
|||||||||||
|
Mini Type |
mm |
1×2/1×4/1×8 |
55×7×4mm |
1×16 |
60×12×4mm |
|||||||
|
mm |
1×32 |
80×20×6mm |
1×64 |
100×40×6mm |
||||||||
|
Input Fiber |
Type |
|
Bare type: 250um Acrylate Coated Fiber |
|||||||||
|
Mini type: 0.9mm loose tube (Hytrel) |
||||||||||||
|
Color |
|
White or Clear |
||||||||||
|
Output Fiber Configurations |
Type |
|
Bare type: 250um Acrylate Coated Fiber (stripped fibers) |
|||||||||
|
Mini type: 0.9mm loose tube fiber （Hytrel） |
||||||||||||
|
Color |
|
4Fiber: Blue/Orange/Green/Brown 8Fiber: Blue/Orange/Green/Brown/Slate/White/Red/Black |
||||||||||
|
Order |
|
4-fiber × 1 |
4-fiber × 1 |
8-fiber × 1 |
8-fiber × 2 |
8-fiber × 4 |
8-fiber × 8 |
|||||
SUN -PLC -A-B-C-D-E-F-G
|
A |
B |
C |
D |
E |
F |
G |
|
Port |
Input Fiber type |
Input Fiber Length |
Input Connector |
Output Fiber type |
Output Fiber Length |
Output Connector |
|
1×2 1×4 1×8 1×16 1×32 1×64 2×2 ……. 2×32 |
25:250um 90:0.9mm |
10:1.0m 12:1.2m 15:1.5m …… |
OO:None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC LP: LC/PC LA: LC/APC X: Others |
25: 250um 90:0.9mm |
10:1.0m 12:1.2m 15:1.5m …… |
OO:None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC LP: LC/PC LA: LC/APC X: Others |
