Switch Type：Mechanical
Package Type：Rackmount
Fiber Configuration：1x8
Dimension：1U, L482.6×W200×H44mm

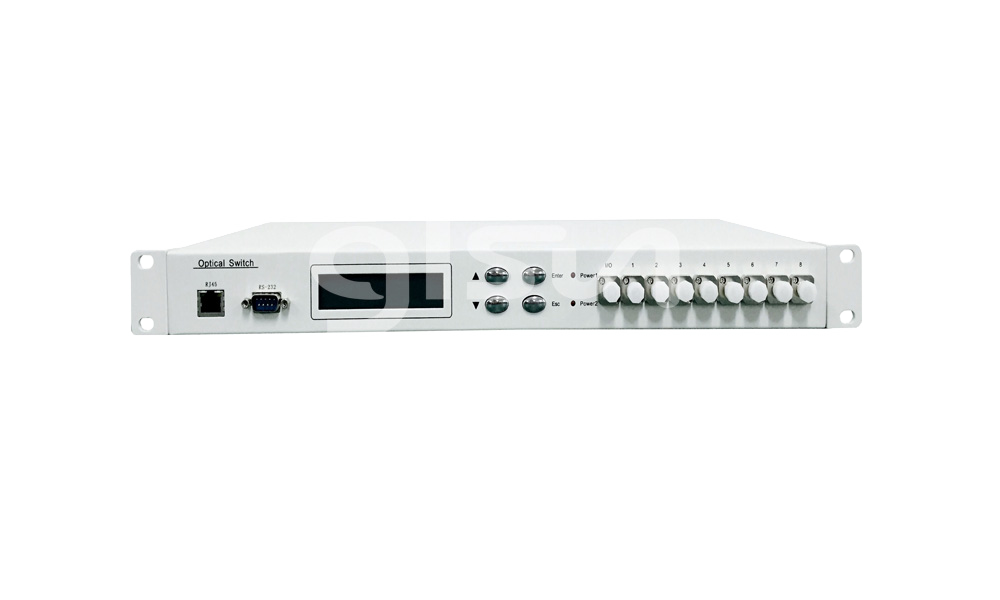

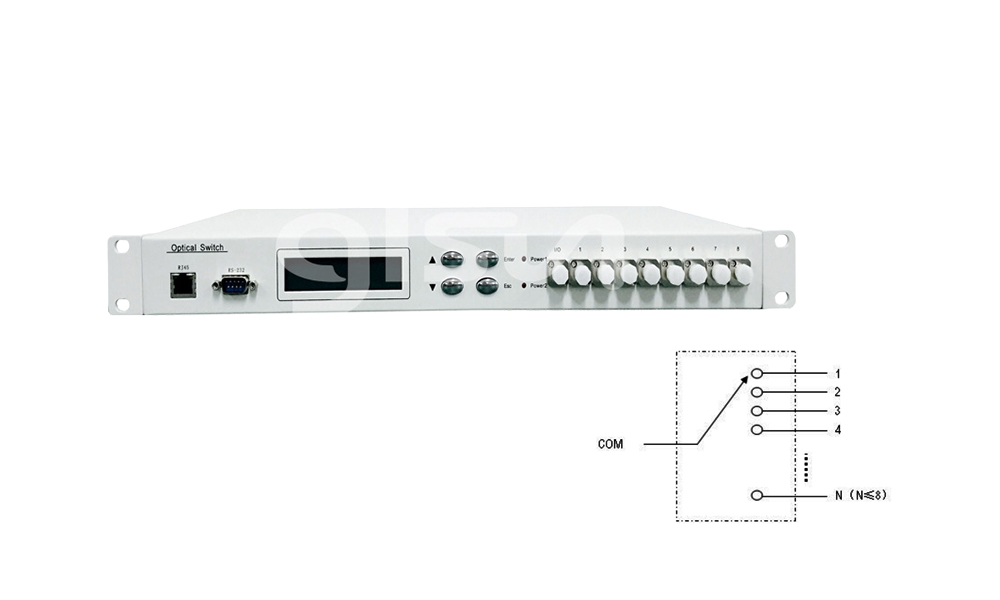

GLSUN 1×8 rack optical switch is a kind of functional device,with the ability of controlling and switching optical route. It can be manually selected from front panel or controlled via RS232 port, Ethernet port. In optical fiber transmission system, it is used for multi-channel fiber monitoring, multi light source/ detector selection, and optical fiber path protection etc. Besides, it is also used in optical fiber test system for optical fiber and its component test, outdoor cable test and multi-spot optical sensors monitoring system.
Features
·Low Insertion Loss and Fast Switching
·SerialNet, High Reliability, High Stability
·LCD Display
·RS232 Control and Ethernet Remote Management
Applications
·FITL
·Automatic Measurement
·Optical Network Remote Monitoring
·Cable Monitoring and Maintaining system
|
Parameters |
Unit |
SUN-SW-1×8 |
|
Insertion Loss 1, 2 |
dB |
Typ:11.4 Max:12 |
|
Wavelength Range |
nm |
1260 ~ 1650 |
|
Test Wavelength |
nm |
1550 |
|
Return Loss 1, 2 |
dB |
≥ 45 |
|
Crosstalk 1 |
dB |
≥ 55 |
|
PDL |
dB |
≤0.3 |
|
Repeatability |
dB |
≤ ±0.05 |
|
Durability |
|
≥ 10 Million |
|
Optical Power |
mW |
≤500 |
|
Switching Time |
ms |
≤ 8 |
|
Operating Temperature |
℃ |
-5 ~ +55 |
|
Storage Temperature |
℃ |
-20 ~ +70 |
|
Relative Humidity |
% |
5 ~ 95 |
|
Monitoring Port |
|
RJ45, RS232 |
|
Power Supply |
V |
AC：100～240V（50/60Hz ） or DC：36～72V |
|
Chassis Type |
mm |
1U L482.6×W250×H44 |
|
Remarks: Customization is available. |
||
SUN-SW-1×8-A-B-C-D-E
|
A |
B |
C |
D |
E |
|
Fiber Type |
Test Wavelength |
Power Supply Mode |
Connector |
Chassis Type |
|
SM:SM, 9/125 X: Others |
1550: 1550nm X: Others |
AC: 100-240V DC: 36-72V AC/DC: 100~240V / 36~72V AC/AC: Dual 100~240V DC/DC: Dual 36~72V X: Others |
FP: FC/UPC X: Others |
1U: L482.6×W250×H44 |
