S1x4 Optical Switch
  • S1x4 Optical Switch
  • S1x4 Optical Switch

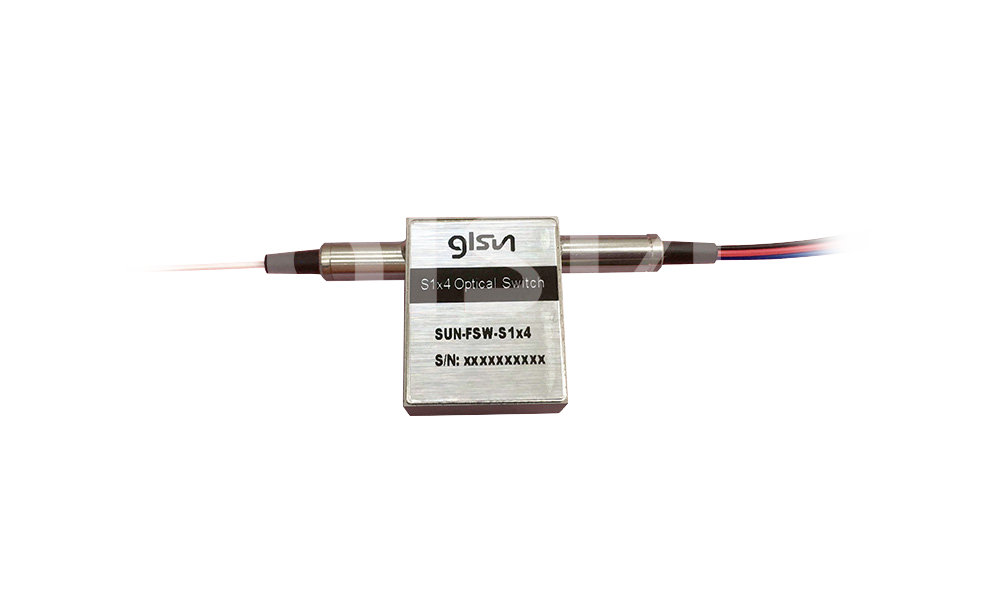

S1x4 Optical Switch

Switch Type:Mechanical

Package Type:Device

Fiber Configuration:1x4

Wavelength Range:850±40 / 1300±40nm, 1260 ~ 1650nm

Dimension:(L)27.5×(W)22.5×(H)10 ±0.2mm

Product Details

GLSUN S1x4 optical switch is a device in fiber optic communications that allows a single input signal to be directed to one of four output ports. It's essentially a routing device used to control the path of optical signals in a fiber optic network.



Features

·Low Insertion Loss
·Wide Wavelength Range
·Low Crosstalk
·High Stability, High Reliability
·Epoxy-free on Optical Path
·Latching and Non-latching



Application

·R&D in Laboratory

·System Monitoring

·OADM

·MAN(Metropolitan Area Network)

·Network Security and Monitoring

Specifications

Parameters

Unit

SUN-FSW-S1×4

Wavelength Range

nm

850±40 / 1300±40

1260 ~ 1650

Test Wavelength

nm

850 / 1300

1310 / 1550

Insertion Loss 1, 2

dB

≤ 1.0

Return Loss 1, 2

dB

≥ 30

≥ 50

Crosstalk 1

dB

≥ 35

≥ 55

PDL

dB

--

≤ 0.05

WDL 3

dB

≤ 0.25

TDL 4

dB

≤ 0.3

Repeatability

dB

≤ ±0.02

Operating Voltage

V

3.0      or      5.0

Durability

Cycles

≥ 10 Million

Switching Time

ms

≤ 8

Optical Power

mW

≤ 500

Operating Temperature 5

-5~ +70

Storage Temperature

-40 ~ +85

Relative Humidity

%

5 ~ 95

Dimension

mm

(L)27.5×(W)22.5×(H)10 ±0.2

Note:

1. Within room temperature and SOP.

2. Excluding connectors.

3. The center wavelength is the reference for the WDL value.

4. The room temperature is the reference for the TDL value.

5. The optical power can be customized to ≤ 10W.



Optical Route

Ordering Information

SUN-FSW-S1×4-A-B-C-D-E-F-G

A

B

C

D

E

F

G

Fiber Type

Operating Voltage

Switch Type

Test Wavelength

Tube Type

Fiber Length

(Include connector)

Connector

SM:SM,9/125

M5:MM,50/125

M6:MM,62.5/125

X:Other

3:3V

5:5V

L:Latching

N:Non-latching

850:850nm

1310:1310nm

1550:1550nm

1315:1310/1550nm

X:Others

25:250um

90:900um

X:Others

05:0.5m±5cm

10:1.0m±5cm

15:1.5m±5cm

X:Others

OO: None

FP: FC/PC

FA: FC/APC

SP: SC/PC

SA: SC/APC

STP: ST/PC

LP: LC/PC

LA: LC/APC

X: Other
