Switch Type：Mechanical
Package Type：Device
Fiber Configuration：1x8
Wavelength Range：850±40 / 1300±40nm; 1260 ~ 1650nm
Dimension：(L)32×(W)31×(H)10 ±0.2mm

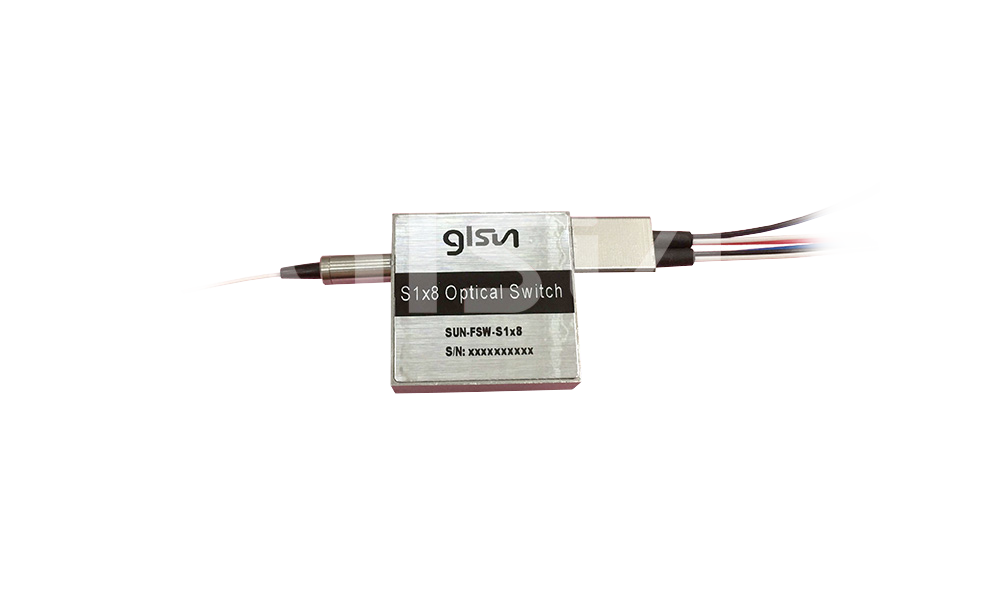

GLSUN S1x8 Optical Switch, which is famous for its high performance, low insertion loss and compact dimension. This 1x8 fiber optic switch is an ideal component for OADM,OXC,system monitoring and protection. With compact package, 1x8 mechanical optical switch can be easy to integrate into a high density optical communication system.
Features
· Low Insertion Loss
· Wide Wavelength Range
· Low Crosstalk
· High Stability, High Reliability
· Epoxy-free on Optical Path
· Latching and Non-latching
Applications
· R&D in Laboratory
· System Monitoring
· OADM
· MAN(Metropolitan Area Network)
· Network Security and Monitoring
|
Parameters |
Unit |
SUN-FSW-S1×8 |
|
|
Wavelength Range |
nm |
850±40 / 1300±40 |
1260 ~ 1650 |
|
Test Wavelength |
nm |
850 / 1300 |
1310 / 1550 |
|
Insertion Loss 1, 2 |
dB |
≤ 1.0 |
|
|
Return Loss |
dB |
≥ 30 |
≥ 50 |
|
Crosstalk |
dB |
≥ 35 |
≥ 55 |
|
PDL |
dB |
-- |
≤ 0.05 |
|
WDL |
dB |
≤ 0.25 |
|
|
TDL |
dB |
≤ 0.25 |
|
|
Repeatability |
dB |
≤ ±0.02 |
|
|
Operating Voltage |
V |
3.0 or 5.0 |
|
|
Durability |
Cycles |
≥ 10 Million |
|
|
Switching Time |
ms |
≤ 8 |
|
|
Optical Power |
mW |
≤ 500 |
|
|
Operating Temperature 3 |
℃ |
-5~ +70 |
|
|
Storage Temperature |
℃ |
-40 ~ +85 |
|
|
Relative Humidity |
% |
5 ~ 95 |
|
|
Dimension |
mm |
(L)32×(W)31×(H)10 ±0.2 |
|
|
Note: 1 With room temperature and SOP. 2 Excluding connectors, add 0.2dB one pair connectors. 3 The Operating temperature range can be customized from -40 to 85 ℃. |
|||
SUN-FSW-S1×8-A-B-C-D-E-F-G
|
A |
B |
C |
D |
E |
F |
G |
|
Fiber Type |
Operating Voltage |
Switch Type |
Test Wavelength |
Tube Type |
Fiber Length (Include connector) |
Connector |
|
SM:SM,9/125 M5:MM,50/125 M6:MM,62.5/125 X:Others |
3:3V 5:5V |
L:Latching N:Non-latching |
850:850nm 1310:1310nm 1550:1550nm 1315:1310/1550nm X:Others
|
25:250um 90:900um X:Others |
05:0.5m±5cm 10:1.0m±5cm 15:1.5m±5cm X:Others |
OO: None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC STP: ST/PC LP: LC/PC LA: LC/APC X: Other |
